High Voltage (Plate) - 259 VA to 1610 VA
700 series







Features

* Two Versions available:
  o  Primary 115 VAC, 50/60 Hz. or
  o   Primary 117/234 VAC, 50/60 Hz.
* At 2,000 VAC and above, secondary leads are through rubber bushings (figure B).
* Units can be run full wave bridge or full wave C.T.
* V.A. is a C.C.S. rating
* Current ratings are CCS (Continuous Commercial Service) & ICAS ratings (Intermittent Commercial or Amateur Service).
* Enclosed, 4 hole chassis mount.
* Minimum 6" long leads.
* Class A insulation (105 degress C).
* Hi - Pot test at minimum of twice secondary voltage.
* Conservative designs - CSA certified (209651).
* Notes
  o  VA rating specified is CCS (Continuous Commercial Service)
  o  ICAS ratings (Intermittent Commercial or Amateur Service)
  o  115 VAC only models - Input Black & Black
  o  Dual Primary (117/230VAC) models - 117VAC input: connect Blue to Black and Brown to White.
  o  234VAC input: connect Brown to Black - input is Blue & White

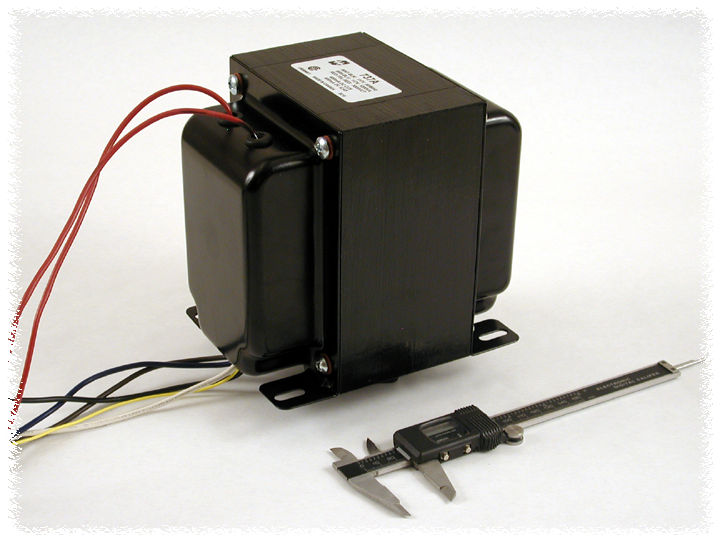

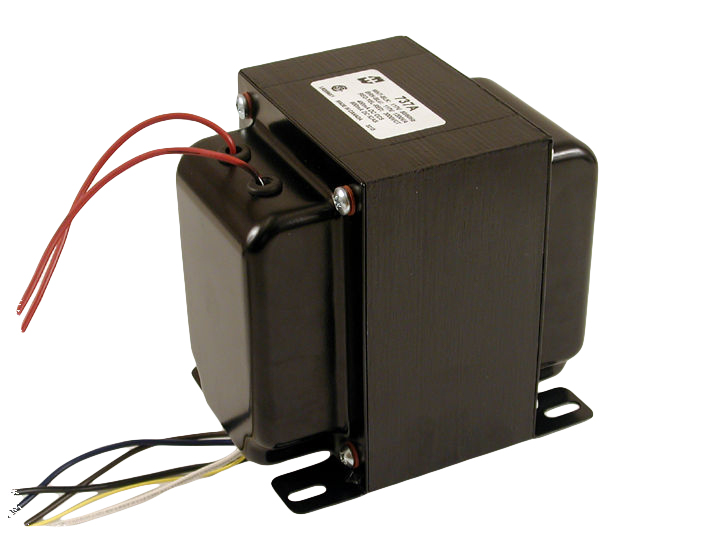

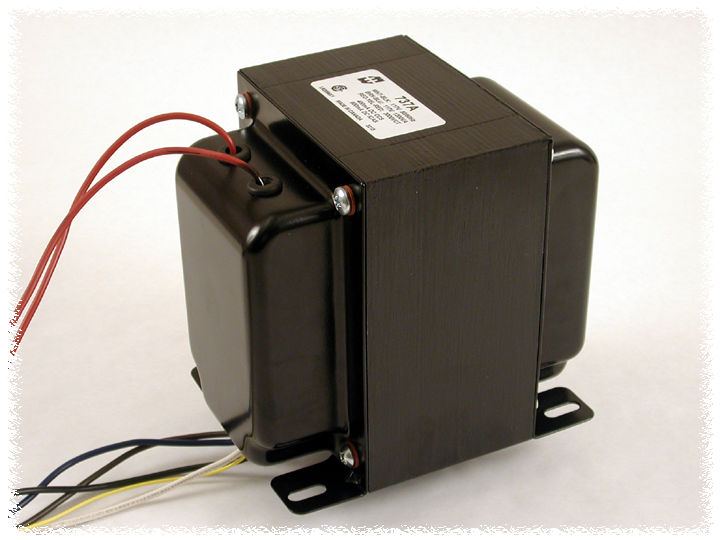

Gallery







                Part Details

Part Number     Part Number       A.C.Hogh Voltage H.V.Secondary
115 VAC Price Paypal 117/234 VAC Price Paypal V.A. Secondary Current
 Primary     Primary       R.M.S. (CCS) (ICAS)
710 $128.21

710A $157.70

259 750V C.T. 345ma. 518ma.
712 $159.17

712A $172.02

293 850V C.T. 345ma. 518ma.
714 $137.16

714A $186.38

200 1,020V C.T. 196ma. 288ma.
715 $173.18

715A $192.12

352 1,020V C.T. 300ma. 450ma.
717 $622.99

717A $652.26

510 1,020V C.T. 500ma. 750ma.
718 $178.92

718A $196.39

235 1,250V C.T. 200ma. 300ma.
720 $205.73

720A $222.21

370 1,250V C.T. 300ma. 450ma.
722 $609.13

722A $644.27

720 1,250V C.T. 575ma. 863ma.
724 $193.79

724A $200.68

345 1,500V C.T. 226ma. 339ma.
726 $193.79

726A $200.68

312 1,780V C.T. 202ma. 299ma.
728 $208.73

728A $217.90

346 2,000V C.T. 173ma. 259ma.
732 $664.51

732A $692.17

500 2,500V C.T 200ma. 300ma.
733 $696.20

733A $729.44

750 2,500V C.T 300ma. 450ma.
735 $759.60

735A $811.95

735 3,000V C.T 250ma. 375ma.
737 $809.51

737A $865.24

1200 3,000V C.T 400ma. 600ma.
739 $902.63

739A $955.72

1610 3,500V C.T 375ma. 565ma.
      742A $836.50

1250 5,000V C.T 250ma. 375ma.
