GENERAL PURPOSE RELAYS


Our company stocks electronic relays for automotive work and electronic projects.
Useful for thousands of different applications.




PC Board Relays




BT - 20 x 9.8 x 11 (12-S type). (DPDT)2 form C. Rating is 1A 24VDC (0.5A 120VAC resistive load). Coil is 3-48VDC. Power is 150-590mW. Dielectric strength between contacts and between coil & contacts is 1000VAC. Mechanical life of 100,000,000 hours, electrical life of 200,000 hours. 4.5g.

 $4.00/each


Voltage Paypal
5V

9V

12V

24V











BS-102 - 15.5 x 10.5 x 11.3. (SPDT)1 form C. Rating is 2A 24VDC (1A 120VAC resistive load). Coil is 3-24VDC. Power is 200-360mW. Dielectric strength between contacts and between coil & contacts is 500VAC. Mechanical life of 10,000,000 hours, electrical life of 100,000 hours. 3.5g.


 $3.00/each


Voltage Paypal
5V

12V

24V




BS-114 - 22 x 16.8 x 14.9. (SPDT)1 form C. Rating is 6A 120VAC, 28VDC 10A 120VAC/28VDC. Coil is 3-24VDC. Power is 330-5450mW. Dielectric strength between contacts and between coil & contacts is 2000VAC/750VAC. Mechanical life of 100,000,000 hours, electrical life of 200,000 hours. 10g.

 $4.00/each





Voltage Paypal
5V

12V

24V




RAS - 18.8 x 15.6 x 15.1. 1 (SPDT) form A,C. Rating is 10A 120VAC. Coil is 3-48VDC. Power is 360mW. Dielectric strength between contacts and between coil & contacts is 1500VAC/1000VAC. Mechanical life of 10,000,000 hours, electrical life of 100,000 hours. 8g.
$4.00/each

Voltage Paypal
5V

6V

9V

12V

24V




BS-901/902 - 32.26 x 27.43 x 27.94. 1 (SPDT) form A,C. Rating is 30A 240VAC/28VDC NC-15A 240VAC/28VDC. Coil is 5-24VDC. Power is 830-930mW. Dielectric strength between contacts and between coil & contacts is 1500VAC. Mechanical life of 10,000,000 hours, electrical life of 100,000 hours. 25g.

$7.90/each


Voltage Paypal
5V

12V

24V




1395JPVS-2C

12VDC
10A

 $5.00




Coil Voltage DC24V Max. Allowable Current 45A
Coil Resistance 362Ω Max. Allowable
Voltage
DC24V
Rated Power 1.6W Max. Current 40A
Nominal Current 63mA Contact
Resistance
80MΩ Max.
Contact Rating 40A Insulation Resistance 100MΩ Min
(DC500V)
Rated Carrying Current DC14V
40A



4887DBU

24VDC / 40A

Size: 6.1 x 21 x 20.9mm

 $5.00







4879E

SPDT

12V DC
10A

Size: 29 x 12 x 20mm

 $5.00

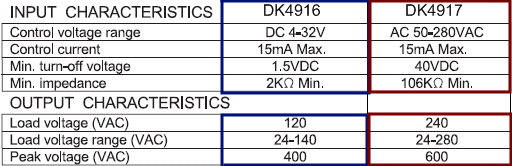

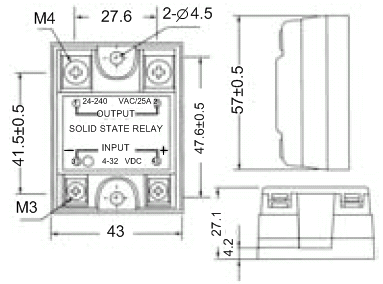

Solid State Relay w/Led


DK4916
25Amp
$23.89

Control Voltage range

DC 4-32V
Control current 15mA Max.
Min.turn-off voltage 1.5 VDC
Min. impedance 2KΩ Min.
Load voltage 120
Load voltage range (VAC) 24-140
Peak voltage (VAC) 400

JGX-40F-AC

40Amp

$25.89

Control Voltage range AC 90-250VAC
Control current 15mA Max.
Load voltage 240VAC



JGX-40F-DC
40Amp
$25.89

Control Voltage range 3-32VDC
Load voltage 240VAC






Solid State Relay w/LED
SSR-60 DA

Output: 24-380VAC 50/60Hz
Input: 3-32VDC
60Amp
2.25" x 1.75"

$28.89




DK4915C
$7.90



EC-OAC5A-11
$7.00



EC-ODC5
$5.00


3  Phase Solid State Relay


YJGX - 3 A6640A

660VAC  40A

$ 48.00



Miniature Power Relay

SFC-224AMT
Coil 24 VAC

25A@277VAC
25A@120VAC
25A@30VDC
$19.00

sold out




10 AMP OCTAL BASE RELAY

Contact Resistance:

50mΩ max.

Operate Time:

20ms max.

Release Time:

20ms max.

Insulation Resistance:

100MΩ min.

Mechanical Life:

10M cycles

Electrical Life:

100K cycles

Resistive Load:

10A@28VDC or 120VAC

Part Number

Circuitry

Oper. Volt.

Coil Res.

Price

PayPal

50-133-0

SPDT

12VDC

120

$12.90

50-134-0

SPDT

24VDC

472

$12.90

50-139-0

SPDT

120VAC

2250

$12.90

50-163-0

DPDT

12VDC

120

$12.90

50-164-0

DPDT

24VDC

472

$12.90

50-165M-0

DPDT

24VAC

85

$12.90

50-169-0

DPDT

120VAC

2250

$12.90

SKKP-2C

DPDT

240VAC



$12.90

Octal Socket

Part Number: 50-910-0
Price: $3.90




3 Pole Relays

27E121 Socket for
3 Pole Relays



$ 6.00


SKAP-3C-12
 COIL  12 VDC
1/3HP  13AMP  120VAC
$12.90

SKAP-3C-24
COIL  24 VDC
10AMP
$12.90

KUP-14A45-120
COIL 120 VAC
 10AMP
$12.90

SKAP-3C-24
COIL  24VAC
1/3HP  13AMP  120VAC
$12.90





3 Pole Relays

27E123 Socket for
3 Pole Relays

$ 6.00

SKKP-3C-24
COIL  24 VAC
1/6HP  10AMP  120VAC
$12.90

MK3P5-S-24
COIL  24 VDC
1/6HP  10AMP  120VAC
$12.90

SKKPL-3C-120
COIL  120 VAC
1/6HP  10AMP  120VAC
$12.90

SKKP-3C-240
COIL  240 VAC
1/6HP  10AMP  120VAC
$12.90





$6.90-DK4901
SPDT

Contact Rating

40A

Rated Carrying Current

DC12V 40A

Max. Allowable Current

50A

Max. Allowable Voltage

32V

Max. Current (Continual)

40A

Contact Resistance

50MΩ Max

Insulation Resistance

50MΩ Min, (DC500V)

Coil Voltage Coil Resistance Rated Power Nominal Current
DC 12V 103Ω 1.4W 117mA

5 Wire Relay Socket
$2.00- DK4922


5 Wire Relay Socket-25cm (with wire)
$4.99- DK4922Wire



BS-108 - 28.2 x 21.8 x 34.4. (DPDT)  10A 120VAC/28VDC.  Dielectric strength between contacts and between coil & contacts is 1000/1500V. Electrical life of 500,000 hours. 35g.

 $7.90

6VDC

6VAC

12VDC

12VAC

24VDC

24VAC

48VDC

48VAC

110VAC

220VAC

BS-108 Socket

$5.90

BMY - 28 x 21.5 x 35.5. (DPDT)2,4 form C. Rating is 5A 220VAC, 5A 24VDC.  Power is 0.9-1.2W. Dielectric strength between contacts and between coil & contacts is 500/1500V. Mechanical life of 10,000,000 hours, electrical life of 100,000 hours. 28g.


 $6.90

6VDC

12VDC

DPDT RELAY SOCKET - 35mm TRACK MOUNT
Socket for 50-06x relays

50-911-0
$5.90


G7J-4A-9-KM

Coil 200-240V
$10.00

Coil 24V DC
$10.00


W92S7A22-24

24V AC 30A-DPSP
$15.00



4 Pole Relay


4PDT-5 Amp Relay
$7.90

6VAC

12VDC

12VAC

24VDC

24VAC

48VDC

48VAC

110VAC

220VAC

4PDT RELAY SOCKET - 35mm TRACK MOUNT
Socket for 50-09x relays.

50-912-0
$7.90





4PDT PC MOUNT RELAY SOCKET

$3.99

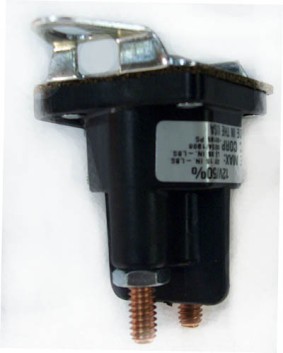

Heavy-duty Power Solenoid

12V-S
12VDC
2.5"(H) x 1.6"(D)
$24.00

Specifications:

Replaces these part numbers:

Dimension Battery Terminal 5/16-24, Motor Terminal 5/16-24, Switch Terminal 10-32,Ground Terminal None, Notes: Continuous Duty, Notes: Grounded Base, Notes: Flat Bracket

ACCUMAX

10-CH71019
ACCURATE 7-1019
ARROWHEAD SPL6010
ARROWHEAD (OEM) 10-CH71019,7-1019,CH24106,PO52-312P
CHANGZHOU HONGJING CD-103
CHRYSLER 3738942
COLE HERSEE 24106,24106BX
HARLEY DAVIDSON 71580-75
J & N 240-01003
JOHN DEERE AR73144
JOHNSON ELECTRIC 5117540,SO51175
MASSEY FERGUSON 522747M91
NATL LIFTGATE PARTS APL3000
POLLAK 52-312P
PRESTOLITE 67-738,67-738-1
WESTERN MOTORS WS-139
WHITE RODGERS 70-111225-5A,70-914




A410-388184-15
120V 50-60Hz    12AMP
$ 4.00


KU5A15
6V 50-60Hz     10AMP
$ 3.00


A410-061927-00
115V 50-60Hz
$ 3.00






PC MOUNT RELAY -1
A410-363733-15
120V  50-60Hz     5A
$ 3.00

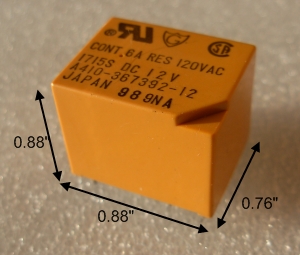

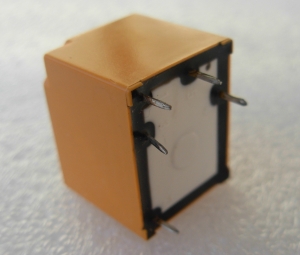

PC MOUNT RELAY -2
12VDC 10AMP
$ 3.00


PC MOUNT RELAY -3
A410-367279-108
24V 13AMP  DC
$ 3.00

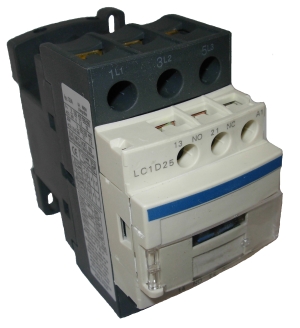

LC1D2510
   120V Coil  40 Amp

$ 26.00




Air conditioner Relay
   24VAC  Coil  40 Amp

$ 20.00
(Sold out)





A1030

12V

$ 3.00

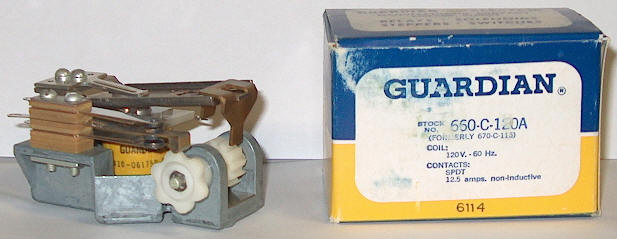

Stepper  Relay

660-4C-120-A
4PDT
120V /50Hz / 12.5A
non-inductive

$14.00







if you looking for time delay relays click here
