A1 Security Cameras A1 Security Cameras Cameras (Pinhole,CMOS and CCD)





2.4 GHz Audio and Video Security Baby Monitor


$ 169.00





Frequency ISM 2,400~2,483MHz
Built-in Rechargeable Li-battery
Receiving Sensitivity -80dBm
Brightness and Ratio option
2.5" TFT LCD Display
Resolution 640x480
Built -it Speaker
Volume Control
Comes with Power Supplies








Wireless Video Door Phone











$ 199.00



  • Wireless Video Door Phone

  • Tech - Specification

    1.  Wireless intercom self - monitoring /unlocking / calling

    2.  The non - obstacle remote control distance is 180-400m

    3.  Color display screen in TFT 2.4 / 3.5 INCH

    4.  2.4G launch frequency

    5.  Rechargeable 1200mAh Li - ion batteries







Long Distance Wireless Transmission Video & Stereo System


ZR800

2.4GHz 3W
$ 140.00

Applications:

A: Wireless advertisement media system
B: Wireless security monitoring system
C: Wireless home theater system
D: Wireless remote control system
E: Wireless public fire system
F: Wireless baby monitoring system
G: Transmitted TV signal system

Transmission distance 1 KM ( line of sight)




Endoscopes



MTP TF2809   Color
$ 159.00

  • Flexible video borescope with built in adjustable dual LED light source to illuminative object


  • High resolution image & optical system


  • Two bright LED lamps to illuminate viewed object


  • Glare-free close-up & wide range field of view


  • Flexible gooseneck retains configured shape


  • Shaft can be exposed to water, IP 6.7 water level


  • TV Video output for capturing images


  • Powered by 4 x AA batteries


Function
View angle 54
Focal distance 6cm to infinite
Len`s outer dimension 14mm




EPSN-700 Color Ceiling Type
7 Inch Constant Speed Dome Camera



 $ 299.00

Main Character:
Ingenious and Elegant design
420TVL
Built-In decoder, 64 presetting position
Menu display (OSD),manual set White balance, backlight compensation, and brightnessAuto Plus, Anti-flashing
220 times zooming
Ceiling, wall installation
Open agreement, RS-485 COMMUNICATION

Model No.: EPSN-700
Size 7″Dia.:15.8cm
CCD Color CCD

Horizontal Scanning Range

360
Horizontal Scanning Speed:  0-15/second

Vertical Scanning Range

090

Vertical Scanning Speed

8/second

Scanning limitation

Horizontal adjustable
TV format PAL/NTSC format,1/4″ color CCD

Resolution

420TVL

Lowest Luminous

0.1Lux 0LUX

Built-In Lens

22 times optical zooming lens3.985.8mm

Digital Zooming

10times

Zooming Mode

Auto

Presetting Position

64
Decoder Have
Cover Material ABS Plastic

Input voltage

Pan:24VAC/Camera12VDC
Wattage Pan:5W/Camera:4W




Keyboard Controller for Dome Camera-RS-485





  • Used for terminal receivers such as the intelligent Speed Dome
  • Can control as much as 32 speed dome
  • Maximum communication between keyboard and receiver is up to 1.2 km
  • Achieve the function of controlling pan/tilt, lens etc.


$160.00






DVR



Features:
-MPEG4 compression
-SOC single chip, high stability
-Linux operating system
-Full-D1 live monitoring, each or quad display
-Multiple record modes: contineous, motion
detection, sensor triggered, time schedule
-Motion detection: settable window & sensitivity
-Variable record frame rate & quality level
-Support hiding & switching channels
-System self-recovery after power reconnected
-Video loss alarm function
-IR Remote control
-Audio I/O
-Optional VGA output
-USB2.0
-Network monitoring: IE based

$ 299.00

Model
EPD6004
Compression
MPEG4
Video I/O
BNC 4-channel inputs / 2-channel outputs
Audio I/O RCA 2-channel inputs / 2-channel outputs
Display Resolution
NTSC: 720x480   PAL: 720x576
Display Frame Rate
NTSC: 120fps    PAL: 100fps
Record Resolution NTSC: 720x240   PAL: 720x288
Record Frame Rate
NTSC: 60fps    PAL: 50fps
HDD Interface
IDE or SATA
Record Modes
Continuous, Motion Detection, Sensor Triggered, Time Schedule
Record Picture Quality
Low, Normal, High, Higher
Sensor & Alarm 4-channel inputs / 1-channel output
PTZ Control RS-485
Network Interface RJ45, TCP/IP
USB Interface
USB2.0(Optional)
VGA Output Optional
Remote Control
IR remote control
Power Supply
DC 12V / 5A (adapter included)
Dimensions (DxWxH)
345x226x52mm




22X - Zoom Colour Cameras with remote Control


Auto
Focus
Sony CCD
420 / 480
TV-Lines

$ 139.00




Colour DSP Camera





DSP1/4
$ 99.00

Image Sensor 1/4" Sharp CCD
System of Signal  NTSC
Horizontal Resolution 420TVL
S/N ratio (AGC Off) >48dB
Minimum illumination (F1.2) 0Lux (IR on)
Video Output 1.0Vp-p/75 ohm
AGC Auto
White Balance Auto
BLC Auto
Infrared Lamps 8~15m
Operation voltage DC 12V 10%
Power Consumption  DC12V 120mA
Operation surroundings -20C ~+50C,
 Humidity 10%~95%
 Presure 86Kpa~106Kpa




Color waterproof day & night camera





WITH BRACKET
608S - 3


Part Number Price Paypal
608S - 3 for 1 camera $89.00

608S - 3 for 2 cameras $148.00

Image sensor 1/4" sharp ccd
Signal system ntsc
Horizontal resolution 420tv lines
Min illumination 0lux(infrared lamps on) 1.0lux (day)/f1.2
S/n ratio  >=48db
Gamma characteristic 0.45
Shutter speed 1/50(1/60)-1/100,000 sec
Video output 1.0 vp-p,75
Power consumption DC 12v,1.4w

when the infrared lamps are on, the max current is 300ma

Lens 6mm/f1.5
Housing  Aluminum alloy
Infrared wavelength 850nm
Infrared lamps irradiation distance 15m
Infrared lamps

Night/day turn on/off



HIGH RESOLUTION    Color waterproof day & night camera



WITH BRACKET
608S - 1  540 TVL


Part Number Price Paypal
608S - 1  540 TVL for 1 camera $99.00

608S - 1  540 TVL for 2 camera $168.00

Image sensor 1/4" sharp ccd
Signal system ntsc
Horizontal resolution 540 tv lines
Min illumination 0lux(infrared lamps on) 1.0lux (day)/f1.2
S/n ratio >=48db
Gamma characteristic 0.45
Shutter speed 1/50(1/60)-1/100,000 sec
Video output 1.0 vp-p,75
Power consumption DC 12v,1.4w

when the infrared lamps are on, the max current is 300ma

Lens 6mm/f1.5
Housing Aluminum alloy
Infrared wavelength 850nm
Infrared lamps irradiation distance 15m
Infrared lamps Night/day turn on/off




V
andal Proof Camera


 $ 99.00

MODEL

348-1

Pickup Device

1/3" SONY

Horizontal Resolution

420 TVL

Pixels

PAL:500(H)582(V)
 NTSC:510(H)492(V)

TV SYSTEM

PAL/NTSC

Sync System

Internal Syncronization

S/N Ratio

≥48dB(AGC Off)

Gamma Characterlstic

0.45

Video Output

1.0Vp-p 75Ω

Scanning System

PAL:625 lines 50 Field/sec,
NTSC:525 lines 60 Field/sec

Electronic Shutter Time

Auto,PAL 1/50-100,000Sec,
NTSC 1/60-1/100,000Sec

Operation Temperature

-10 - +50 RH95% Max

Storage Temperature

-20 - +60 RH95% Max

White Balanc

Auto

Power Supply

DC12V10%




CCD
Digital Vide Camera


 $ 89.00

IR Color CCD  Camera
System: NTSC 12mm
Power: 12 V
Video Output: 1Vp-p75ohm




Waterproof Camera




  • Varifocal & Zoom lens (External Adjustable)

  • 50m IR Waterproof camera

  • SONY Super HAD CCD;

  • 420TVL; IR ON 0Lux;

  • 4-9MM lens manual adjustment

  • LED imported from Taiwan ,under 1.0LUX when being on, above 3.0LUX when being off

  • Waterproof , indoor/outdoor

 $ 159.00

  Model

9099S

Image Sensor

1/3" SONY

Effective pixels

 PAL:500(H)582(V)  NTSC:510(H)492(V)

Horizontal resolutions

420TVL

Signal System

PAL/NTSC optional

Min.illumination

0.000LUX/F1.2 (LED on)

Lens

4-9MM lens with manual adjustment

Electronic Shutter

PAL: 1/50~1/100,000ses ; NTSC:1/60~1/100,000ses

S/N ratio

 48dB

Video output range

1Vp-p/75 Ω

White balance

Auto

Backlight compensation

 Auto

Gamma Characteristic

0.15

LEDS

36 big leds

IR available distance

50M

Power supply

DC 12V,  DC12V/AC220V

Work temperature

 -10C ~ + 50C




AIC250 Network Camera


  • View over the Internet in Full Motion Video at 640x480 resolution
  • Supports web configuration with password protection
  • Capable of still image captures, video recording, and e-mail notices
  • Use up to 16 cameras for complete area monitoring

    $ 106.00

Connection Ethernet 10/100 Mbps
Protocol TCP/IP, UDP, ARP, ICMP, BOOTP, RARP, DHCP, PPPoE, SMTP, FTP, HTTP, DDNS Support
Camera Sensor: 1/3" Color CMOS, Resolution: 640x480, Focal Length: 6.0 mm, Aperture: 1.8, S/N Ratio: 57dBm
Video Format Image Compression: MotionJPEG
Resolution 10fps @ 640x480 (VGA), 25fps @ 320x240 (CIF), 30fps @ 160x112 (QCIF)
Security Admin/User protected, password authentication
Power Adapter 5V / 2.5A
Dimensions 5" x 2.75" x 1.3"
Temperature Operating: 5-40 degrees C, Storage: -25-50 degrees C
Physical Specifications Dimensions: 160mm x 108mm x 30mm (L x W x H)
Weight: 235g
Certification FCC, CE




AIC250W Wireless Camera


AIC250

  • View over the Internet in Full Motion Video at 640x480 resolution
  • Supports web configuration with password protection
  • Capable of still image captures, video recording, and e-mail notice
  • Use up to 16 cameras for complete area monitoring
  • Utilize wireless networks for better camera placement

$ 139.00

Connection IEEE 802.11g
Protocol TCP/IP, UDP, ARP, ICMP, BOOTP, RARP, DHCP, PPPoE, SMTP, FTP, HTTP, DDNS Support
Camera Sensor: 1/3" Color CMOS, Resolution: 640x480, Focal Length: 6.0 mm, Aperture: 1.8, S/N Ratio: 57dBm
Video Format Image Compression: MotionJPEG
Resolution 10fps @ 640x480 (VGA), 25fps @ 320x240 (CIF), 30fps @ 160x112 (QCIF)
Security Admin/User protected, password authentication, WEP 64/128bit
Power Adapter 5V / 2.5A
Dimensions 5" x 2.75" x 1.3"
Temperature Operating: 5-40 degrees C, Storage: -25-50 degrees C
Physical Specifications Dimensions: 160mm x 108mm x 30mm (L x W x H)
Weight: 235g
Certification FCC, CE




AICAP650W SkyIPCam Pan & Tilt / Motion Wireless Camera


AICAP650W

  • Thermal Infrared Sensor Motion Detection
  • Built-in wide angle Pan/Tilt device which allows remote control from web browser
  • MJPEG Mode Support
  • Remote access from web browser for live image viewing and audio capture
  • Supports TCP/IP networking, UPnP, SMTP e-mail, HTTP and other Internet related protocols
  • Embedded Web UI configuration with Administrator ID/Password protection

    $ 299.00

Camera

Sensor Resolution : 640 x 480 pixel
Sensor Type : Color CMOS
Sensor Lens : f: 6.0 mm, F: 1.8
Video Image compression : MJPEG
Image frame rate : 30fps@QCIF, 30fps@CIF, 20fps@VGA
Video resolution : 160x120, 320x240, 640x480
Audio Audio Input : Internal Omni-directional MIC
Communication LAN : RJ-45, 10/100M auto-sensed, AUTO MDI-X
Pan/Tilt Protocol : HTTP, FTP, TCP/IP, UDP, ARP, ICMP,DHCP,POP3, SMTP, PPPoE, DDNS ,UPnP
PIR Sensor Pan : +120 ~ -180
Tilt : +45 ~ -5
USB Interface One external USB 2.0 Host ports ( support 1.1 device)
Wireless Connection
Configuration
Connection Mode: Infrastructure, Adhoc
SSID (Network Name)
Wireless Channel
WEP / WPA-PSK (TKIP) Encryption
Power Adpater Power: DC 5V 2.5A, switching type power supply
Power consumption : 7.5W (1500 mA x 5 V) maximum
LED Access LED: Green-Orange Bi-color
Status LED : Green-Red Bi-color
Certification FCC, CE



Newest-Hidden 1/3 Sony Curtain Motion Mini
Weird Spy Colour CCD Camera
KC-SB3142

KC-SB3142

$ 99.00

Camera Apparatus 1/3 Sony chip
Validity: CCIR  500 x 580
EAI 510 x 492
Sensitivity area 4.9mm x 3.7mm
Beaconage CCIR/EIA
Horizontal Definition 420 TV Lines
Lens 3.7mm/ F2.0
Min Illumination F1.2 inch, 0.05 Lux
S/N Ratio >48dB
Shutter Speed 1/50 or 1/60-/100,000
Video Output 1.0Vp-p, 75
Power Supply DC 12V

Power Consumption

90mA



Hidden Sprinkler Camera
KC-SD4142

KC-SD4142

$ 99.00

Image Senso 1/4 Sony Super HAD CCD
CCD Total Pixels 537(H) x 505(V) / 537 (H) x 597(V)
Scanning System 525 lines, 60 fields/ sec 625 lines, 50 fields/sec
Sync System internal
Minimum Illumination 0.5 Lux F1.2
Resolution 420TV Line
White Balance  ATW/AWC Switch able
Gain Control AGC on/off Switch able
S/N Ratio 48dB (AGC OFF)
Electronic Shutte 1/60~1/100,000 sec 1/50~1/100,00 sec
Lens  Pinhole Lens 4.3mm
B.L.C Function  ON /OFF Switch able
Video Output Composite 1.0V p-p at 75 ohm
Gamma Correction  0.45
Operation Humidity  within 85% RH
Operation Temperature  -10C to 50C
Power Supply  DC120V 1V/100mA
Dimensions (L x W ) 110 x 70



Wide Angle Day/Night Car Rear View Color Camera
ES912C

LARGER IMAGE



$76.80

This production is Color camera it is available for any thickness door,
it is easy to install:
Fix the hole camera on the door vent directly.
Connect the spy-hole camera AV cable(yellow) with monitor.
Connect the adaptor 8V-12V/200mA to the spy-hole camera,
the power plug(red).

Array size EIA(NTSC):320 X 240 pixels
CCIR(PAL):352 X 288 pixels
Effective image area 1/4"
Auto electronic exposure (seconds) 1/50--1/60000
Min.lllumination(3000K) 0.5lux@f1.4
View angle 92
S/N Ratio 46dB (AGG=1x)
Power supply DC-12V
Current consumptions 25mA
Exterior size L=42mm 13.9mm



CCTV Door Eye Hole Security Color Camera
K702C

LARGER IMAGE

$69.00

This product is color camera it is available for any thickness door,
 it is easy to install
Fix the hole camera on the door vent directly
Connect the spy-hole camera AV cable(yellow) with monitor
 Connect the adapter 8V-12V/200mA to the spy-hole camera,
the power plug(red).


Array size EIA(NTSC):320 X 240 pixels; CCIR(PAL): 352 X 288 pixels
lens 2.8mm
Effective image area 1/4 CMOS video sensor
Autto electronic exposuer(seconds) 1/50--1/60000
Min.illumination(3000K) 3Lux/ F1.2
View angle 92
S/N Ratio 46dB (AGG=1x)
Power supply DC+8V--12V
Current consumptions 25mA
Exterior size L=42mm 13.9mm



Newest- 1/4 Sharp CCD Mini DOME Color CCTV Camera
ES301CCD

LARGER IMAGE

$59.28

 Supply+12V DC to power & video output automatically makes video out signal available.

 Electronic iris can be used in applications with
 a wide spectrum of lighting.

The camera also can work in the water because of its special waterproof design.

 Angle of view is determined according to lens type in use (Standard: 16mm lens).

Built in infrared Lamps. Can shoot picture clearly at night.




HD Portable DVR with 2.5" TFT LCD Screen






Mode: Video Recorder / Camera
Cycled Recording
Support SD / MMC Card: up to 32 GB
Repert storage by Section
Interface: USB 2.0
Power input: DC 5V
Comes with 4 GB Memory Card ,Stand, USB Cable, Car Adapter, Battery

$79.00

Car Back View Camera with  Led`s
G-W 281






12V

$ 98.00




Car Back View License Plate Waterproof Camera



Was: $ 69.00
Sale Price: $ 49.00

License Plate Back-up Camera

Installs on Any Vehicle With Standard License Plate Mounting

Wide Viewing Angle: 170

Aluminum License Plate Frame with
 Built-in, Swivel Mounted Color Camera
25 feet Power / Video Cable to Connect Camera Unit with Monitor

Vertical Swivel Adjustment for Different Viewing Angles

(Chrome)



Rearview Mirror TFT LCD
Color Monitor with touch Button


$ 79.00

Pal / Ntsc system Auto Switching

High Resolution, Clear Picture Display

Two Video Inputs / OSD Display

Power Consumption:  DC 12V / 10W

Brightness, Color, Contrast, Tint Control

Automatic Mirror image selector for back-up camera

Clip - on Mounting kits fits all cars

Handsfree Bluetooth Function is optional

SD Card is optional



   Spy Pen





$ 59.00

Real Pen with Built Camera and DVR ( Recorder )

                                      4GB

 *  Video Format : CIF AVI

 * Support system : Support WINDOWS98 / 98SE / ME /
 2000 / XP / MAC OS /  LINUX and automatically

 * Battery type : High Capacity Polymer Li - ion Battery.

 * Charge Voltage : DC - 5V

 * USB type : USB standard port

 * Software version : V 2.0

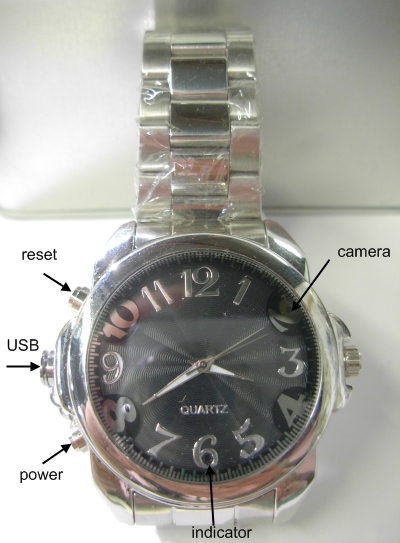

Spy Watch









Real  Watch with Built Camera and DVR
 ( Recorder )

8GB

$ 99.00






Newest Mini Wired Color CCD Camera
ES912CCD

LARGER IMAGE
This camera is a wired waterproof CCD color camera. According to clients requirements, we can mount lenses with different angles, focus and specifications. We can also mount audio frequency or infrared on the camera so as to view objects without ambient light sources.

The device is a multiple function collector, which features complete functions, compactness, low power consumption, high sensibility, convenient usage, easy concealment and easy installation, Particularly, the device is used in the audio meeting, visual telephone, visual e-mail, PC multimedia, toy, game, security protection, supervision or special circumstances. The composite signal is PAL (CCIR) or NTSC (EIA).

The working voltage range is DC+6V,+9V/-9V. It is recommended to adopt the power source specially made for the product. The product may work with electricity for long term. However, the input voltage must not exceed DC+10V and the current no more than 250MA, otherwise, you have to be responsible for consequences

$ 61.92



Camera apparatus 1/3,1/4 Picture sensor
Validity Pixel CCIR: 500 X 580         EAI: 510 X 492
Sensitive area 4.9mm X 3.7mm
Beaconage CCIR/EIA
Horizontal Definition 420 TV LINES
Lens 3.7mm/F2.0
Min Illumination F1.2 inch , 0.05Lux
S/N Ratio >48db
Shutter speed 1/50 or 1/60 - /100,000
Video output 1.0Vp-p,75
Power supply DC-12V
Power Consumption 90mA

Size

30mm X 30mm X 13mm







SN-390C
Color waterproof mini-camera

$ 165.24

Exquisite design, precise circuits and structure, incorporating the highest technology.

All-sealed water-proof body. Cabinet bulk, good for insertion in concealing places. Cable length of 20m+

Specifications:

  • Image Pick Up Device: 1/4" SHARP color CCD
  • Signal System: NTSC/PAL
  • No. of effective pixels: 270,000
  • Resolution: 330 TV lines
  • Sensitivity: 2.5Lux
  • S/N Ratio: 45dB
  • Electronic Shutter: 1/60-1/100000SEC (NTSC), 1/50-1/100000SEC (PAL)
  • Gamma Correction: > 0.45
  • Supply Voltage: 12VDC regulated
  • Operating Temperature: -10C to +50C



SN-410M
Standard Resolution B/W Camera

$ 89.76

Good choice for its reliability & easy installation.

Adopts high quality 1/3" SONY CCD, high resolution, high sensitivity, high contrast are guaranteed. Better distinguishing of objects;.

Specifications:

  • Image Pick Up Device: 1/3" IT CCD

  • Signal System: EIA/CCIR B/W System

  • No. Of Effective Pixels: EIA: 510 x 492, CCIR: 500 x 582

  • Resolution: 420 TV lines

  • Sensitivity: 0.04Lux/F1.2

  • S/N Ratio: 48dB

  • Electronic Shutter: 1/60-1/100000SEC (EIA), 1/50-1/10000SEC (CCIR)

  • Gamma Correction: > 0.45 - on/off

  • Video Output: BNC VBS 1.0Vp-p 75ω

  • Supply Voltage: 12VDC

  • Power Consumption: 3W (MAX)

  • Operating Temperature: -10C to +50C



SN-420M
Standard Resolution B/W Camera

$ 144.00

Good choice for its reliability & easy installation.

Adopts high quality 1/3" SONY CCD, high resolution, high sensitivity, high contrast are guaranteed. Better distinguishing of objects;.

Specifications:

  • Image Pick Up Device: 1/3" IT CCD
  • Signal System: EIA/CCIR B/W System
  • No. Of Effective Pixels: EIA: 510 x 492, CCIR: 500 x 582
  • Resolution: 420 TV lines
  • Sensitivity: 0.04Lux/F1.2
  • S/N Ratio: 48dB
  • Electronic Shutter: 1/60-1/100000SEC (EIA), 1/50-1/10000SEC (CCIR)
  • Gamma Correction: > 0.45 - on/off
  • Video Output: BNC VBS 1.0Vp-p 75ω
  • Supply Voltage: 12VDC
  • Power Consumption: 3W (MAX)
  • Operating Temperature: -10C to +50C


SN-440C
DSP Standard Resolution Color Camera



$ 199.92



Adopts sophisticated DSP (Digital Signal Processing) technology that provides higher quality picture and more advanced functionality.

Uses high quality 1/3" SONY CCD, which provides not only a sharp, fresh picture, but also greatly improved sensitivity. Provides high contrast, high definition picture even in extreme darkness. Designed especially for security surveillance use, perfect choice for a surveillance system.

Specifications:

  • Image Pick Up Device: 1/3" IT CCD
  • Signal System: NTSC/PAL Color System
  • No. Of Effective Pixels: NTSC: 512 x 492, PAL: 512 x 582
  • Resolution: 330 TV lines
  • Sensitivity: 1.5Lux/F1.2
  • S/N Ratio: 48dB
  • Electronic Shutter: 1/60-1/100000SEC (NTSC), 1/50-1/10000SEC (PAL)
  • Gamma Correction: 0.45 - on/off
  • Video Output: BNC VBS 1.0Vp-p 75ω
  • Supply Voltage: 12VDC
  • Power Consumption: 3W (MAX)
  • Operating Temperature: -10C to +50C


SN-450DC and 430DC/A
Color Dome Camera



$ 114.24

Reliable performance, stability, reasonable price, widely used in banks/hotels/supermarkets/offices/hospitals/schools/post offices/toll stations/accounting departments and government offices. Easily installed.

430DC/A has auto-iris/zoom.

Specifications:

  • Image Pick Up Device: 1/3" IT color CCD
  • Signal System: NTSC/PAL
  • No. of effective pixels: 410,000 (SN-450DC), 270,000 (SN-430DC/A)
  • Resolution: 420 TV lines (SN-450DC), 330 TV lines (SN-430DC/A)
  • Sensitivity: 1.5Lux/F2.0
  • S/N Ratio: 48dB
  • Electronic Shutter: 1/60-1/100000SEC (NTSC), 1/50-1/100000SEC (PAL)
  • Gamma Correction: > 0.45
  • Supply Voltage: 12VDC regulated
  • Operating Temperature: -10C to +50C


SN-CM2110 21" Color High-Resolution Monitor



  • 21" Flat square tube, high resolution 600 line (y/c)
  • NTSC/PAL auto-selectable
  • Composite video signal: 2 input, 2 output with Hi/Low impedance switch-able
  • S-VHS video signal: 1 input, 1 output with Hi/Low impedance switch-able
  • 2-channel audio in/out: RCA jack x 4
  • Built-in speaker, Max RMS power of 1W
  • The newest i2C channel control circuit
  • Black electric level expansion circuits and image definition enhance circuits are incorporated in to improve the contrast and sharpness of pictures
  • AC 100-250V, 50/60hz, universal power source
  • Power consumption: 60W
  • 34.3 x 31.9 x 38cm

$ 390.00


Security Camera LENSES






SN-BM1000 9" high-res black and white monitor

Price: $114.24

  • 10" flat square tube
  • Center resolution over 1000 lines
  • AC 120V, 50/60hz
  • Power consumption: 20W
  • 22 x 22.2 x 24.5cm

SN-LCD550 5.5" High-Light High-Res color LCD monitor

Price: $156.30CAD

  • High-Light High-Res TFT-LCD monitor
  • Back-light: cold cathode fluorescent lamp
  • Lightness/color/contrast adjustable
  • NTSC/PAL auto-selectable
  • Light and portable, elegant appearance. Suitable for family and car use, especially for sub-surveillance and adjusting surveillance systems.
  • 960x240 resolution, 12VDC input.

SN-CH201A Indoor Housing Mounting

Price: $18.00

  • Indoor mounting
  • Aluminum
  • Dimensions: 29.5cm (l) x 10.5cm (w) x 8.8cm (h)

SN-CH201B Indoor Housing Mounting

Price: $18.00

  • Indoor mounting
  • Aluminum
  • Side uncovering
  • Dimensions: 29.5cm (l) x 10.5cm (w) x 8.8cm (h)

SN-CH201C Indoor Housing Mounting

Price: $19.80

  • Indoor mounting
  • Aluminum
  • Dimensions: 38cm (l) x 10cm (w) x 10.8cm (h)

SN-CH202A Outdoor Mounting Housing

Price: $30.60

  • Outdoor mounting
  • Aluminum
  • Sun shield
  • Dimensions: 32cm (l) x 10cm (w) x 10cm (h)

SN-CH202B Outdoor Mounting Housing

Price: $30.60

  • Outdoor mounting
  • Aluminum
  • Sun shield
  • Dimensions: 39cm (l) x 12.8cm (w) x 11.5cm (h)

SN-CH203A Outdoor Mounting Housing

Price: $63.24

  • Weatherproof
  • Aluminum
  • Sun shield, heater, fan
  • Dimensions: 39cm (l) x 12.8cm (w) x 11.5cm (h)

SN-CH205 Dome Mounting Housing

Price: $19.38

  • Indoor mounting
  • 5" Dome bubble

SN-CH209 Dome Mounting Housing

Price: $76.50

  • Indoor mounting
  • 9" Dome bubble






Mounting brackets

In order from left to right:


SN-BK301 Plastic, length: 174mm, up to 2KG $8.75



SN-BK302 Aluminum, length: 202mm, up to 5KG $14.86



SN-BK303 Aluminum, length: 265mm, up to 5KG $14.86






Security Camera Cable with Power


25 feet $18.99



50 feet $23.04



75 feet $26.49



100 feet $29.89





DC Plug  to DC Jack "Y" Cables

2.1 Jack to Four 2.1 Plugs

$ 3.99


2.1 Jack to Eight 2.1 Plugs

$ 5.99

DC Power Extension


2.1mm / 5 Ft.

$2.90





Fake Camera



"Dummy" Camera is a fake camera used to prevent theft and crime. Can be used in schools and businesses as an inexpensive replacement of a real camera. $14.00



Digital Video Recorder Computer Capture Card ES104

PRICE: $96.00

Technical  Parameters  of  Product
( ONE )

  • MPEG-4 compressed format, 4ch video input,
    1ch audio input
  • 1 ch per a card or 4 ch per a card, 120M~150M/H (include Audio) set in each CH.
  • Display speed resource (25frames PAL, 30frames NTSC), Display distinguish ratio: 768*568, 384*288, Video engrosses the Hard-disk space 60M-100M CH/H ,Provide all real-time video collective function for 1-CH collection.
  • Different speed to replay, forward or backward .
  • Alarm transfers the signal through the LAN, WWW.
  • Remote browse and replay picture, phone-wire transfer 4 cards installed to reach 16-CH video collection and video resource 100frames .
  • 16-CH general enunciators (infrared explorer, vibrant sensor) can be connected.
  • Auto-combine the kinescope to process the video of alert function.
  • Video record it when is giving an alarm, time is adjustable.
  • Provide 3-CH alarm output, link light control, voice of alert and some peripheral equipment.
  • Each-CH can set mobile-video recon alert function and set mobile-recon area freely.
  • Mobile-video recon can auto-combine the alert video when it happens.
  • Alert from video signal lost and picture shelter.



Wireless Camera with Receiver



PRICE: $84.00

Technical  Specifications



Camera apparatus 1/4  picture sensor
System NTSC / EIA
Validity pixel NTSC:510*492
Picture area NTSC:4.69*3.45mm
Horizontal definition 380line
Scan frequency NTSC / EIA:60HZ
Minimum illumination 3LUX
Sensitivity +18DB-AGL ON-OFF
Power output  300MW / 50MW
Frequency output  0.9G/1.2G
Deliver the distance 50-100M
Voltage DC+8V
Current 200mA
Power consumption 640MW
Size 20*20*20(mm)



Infrared Night Vision Camera ES8012C

PRICE: $96.00

Technical  Specifications


camera apparatus: 1/4 picture sensor
System: NTSC/EIA
Validity pixel: NTSC: 510*492
Picture area:  NTSC:4.69*3.45
Horizontal definition: 300~380line
Scan frequency:  NTSC/EIA:60HZ
Sensitivity: +18DB-AGL ON-OFF
Voltage : DC-12V
Current :  500mA
Power consumption: <=640MW



Camera - DOME ES301C

PRICE: $96.00

Technical  Specifications

Camera apparatus 1/4  picture sensor
System NTSC / EIA
Validity pixel NTSC:510*492
Picture area NTSC:4.69*3.45mm
Horizontal definition 380line
Scan frequency NTSC / EIA:60HZ
Minimum illumination 3LUX
Sensitivity +18DB-AGL ON-OFF
Voltage DC+12V
Current 200mA
Power consumption 640MW
Size 88*70*88(mm)


Pin Hole Mini Camera Color ES203CA

PRICE: $49.00

Technical  Specifications

Camera apparatus 1/3,1/4   picture sensor
System NTSC / EIA
Validity pixel NTSC:510*492
Picture area NTSC:4.69*3.45mm
Horizontal definition  380line
Scan frequency NTSC / EIA:60HZ
Minimum illumination 3LUX
Sensitivity +18DB-AGL ON-OFF
Voltage DC+6V
Current 200mA
Power consumption ≤640MW
Size 20*20*20(mm)



Colour 16 Split System



~16 Input Quad
~Rate: 200f/s(PAL), 240f/s(NTSC)
~Various Display Mode
~Flicker free image capture
~Zoom in Playback mode
~Auto Sequence funtion
~Event detection and report

$249.00

Digital Video Recorder System


Model: EPD3116
$670.00

Features:
-MJPEG compression
-Triplex operation
-Multiple record modes: motion detection / timer / sensor triggered / remote
-Motion detection: area selection & sensitivity adjustment for each camera
-PTZ control via RS485
-PIP, zoom, auto switch display function
-Configurable record picture quality, resolution & frame rate
-System self-recovery after power reconnected
-Network: remote control DVR
-Password protection
-IR remote control included
-Audio I/O
-VGA video output



Specifications:
Video I/O
BNC 16-channel inputs / 2-channel outputs, S-video output
Audio I/O RCA 4-channel inputs / 2-channel outputs
Display Frame Rate
NTSC: 480 fps    PAL: 400 fps
Record Frame Rate
Max. 120 fps (CIF);   60 fps (Half D1)
Max. 100 fps (CIF);   50 fps (Half D1)
Record Modes
Schedule, Motion Detection, Sensor Triggered & Remote
Display Modes
Each, Quad, Auto-switch, Zoom, PIP
Sensor & Alarm 16-channel inputs / 1-channel output
HDD Interface PATA-100, IDE HDDx2
PTZ Interface RS485
USB Interface USB2.0
Simplex/Duplex/Triplex Triplex
Network Interface RJ45
Network Monitoring Software included
VGA Output 1, supports max. 1280x1024/60Hz resolution
Remote Control
IR remote control
Power Supply
DC 12V / 5A (adapter included)
Dimensions (DxWxH)
430x380x70mm

Siamese Camera Cable

500Feet Roll
95% ALUMINUM
2X18GA SIAMESE CABLE PVC UL APPROVAL

RG6U2C-500 $120.00



Back to top


Email us if you have any questions.

Place an order

A1 Electronic Parts
196 North Queen St.
Toronto, Ontario
M9C 4Y1
Tel: (416) 255-0343
Fax: (416) 255-4617
