Eclipse Sloped Top Series, NEMA 4, 12
Single Door Enclosures

Application

  • Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
  • Sloped top prevents water from resting on top as well as providing potential for controls mounting.
  • Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
  • A wide range of sizes and practical accessories make this product line a complete package.
  • For high temperature applications, a gasket retainer may be required, please refer to factory.

Standards
  • UL 508 Type 3R, 4, 12 and 13
  • CSA Type 3R, 4, 12 and 13
  • Complies with
    • NEMA 3R, 4, 12 and 13
    • IEC 60529, IP66


Construction
  • Formed 14 or 16 gauge steel.
  • Continuously welded seams ground smooth.
  • Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • Doors may be easily removed for modifications and are interchangeable.
  • Oil resistant gaskets are permanently secured and can easily be replaced in the field if necessary.
  • Collar studs provided for mounting inner panel.
  • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • Bonding stud provided on door and grounding stud installed in enclosure.
  • Hinges are finished in mild steel.
  • Stainless steel hinge pins and quarter turns.

Finish
  • Cover and enclosure are finished in re-coatable RAL 7035 light gray textured powder coating.
Back to Top

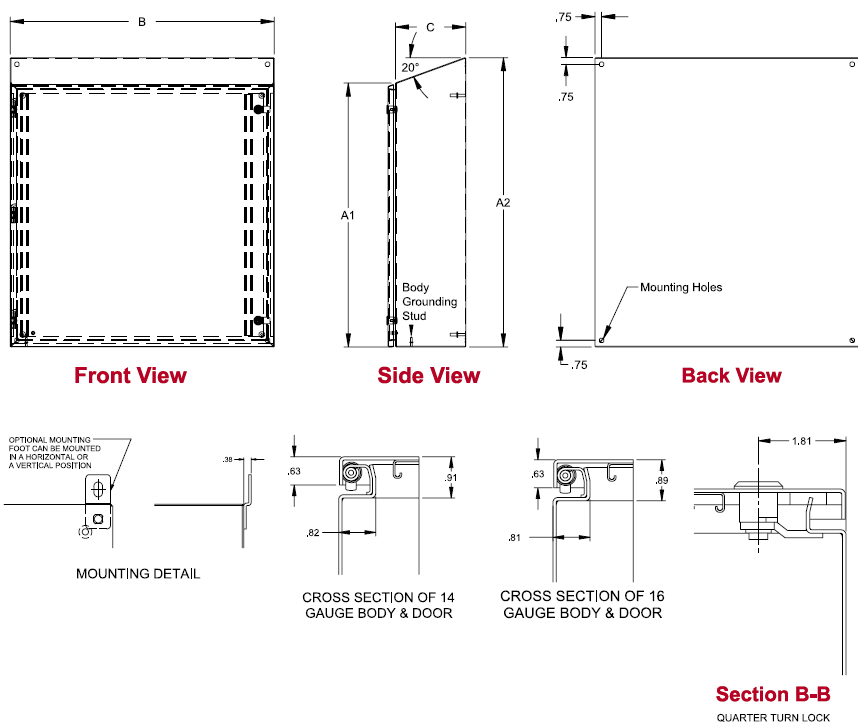

Part Number Dimensions [in] Enclosure Size Gauge Panel
Part No.		 Latch
Qty		 Latch
Style		 Hinge
Qty
A1 A2 B C Door Body
ST12126LG
$224.14

 12.0 14.2 12 6 16 16 EP1212
$9.41

 1 Qtr Turn 2
ST16126LG
$239.76

 16.0 18.2 12 6 16 16 EP1612
$12.14

 1 Qtr Turn 2
ST20166LG
$276.15

 20.0 22.2 16 6 16 16 EP2016
$36.12

 1 Qtr Turn 2
ST20206LG
$298.79

 20.0 22.2 20 6 16 16 EP2020
$43.36

 1 Qtr Turn 2
ST16168LG
$270.94

 16.0 18.9 16 8 16 16 EP1616
$31.36

 1 Qtr Turn 2
ST20168LG
$291.19

 20.0 22.9 16 8 16 16 EP2016
$36.12

 1 Qtr Turn 2
ST20208LG
$315.67

 20.0 22.9 20 8 16 16 EP2020
$43.36

 1 Qtr Turn 2
ST24208LG
$338.42

 24.0 26.9 20 8 16 16 EP2420
$55.36

 1 Qtr Turn 2
ST24248LG
$366.31

 24.0 26.9 24 8 14 16 EP2424
$64.29

 2 Qtr Turn 2
ST30248LG
$406.66

 30.0 32.9 24 8 14 16 EP3024
$77.59

 2 Qtr Turn 3
ST30308LG
$454.02

 30.0 32.9 30 8 14 14 EP3030
$102.66

 2 Qtr Turn 3
ST36308LG
$502.08

 36.0 38.9 30 8 14 14 EP3030
$102.66

 2 Qtr Turn 3
ST242410LG
$376.43

 24.0 27.6 24 10 14 16 EP2424
$64.29

 2 Qtr Turn 2
ST302410LG
$417.80

 30.0 33.6 24 10 14 16 EP3024
$77.59

 2 Qtr Turn 3
ST363010LG
$516.45

 36.0 39.6 30 10 14 14 EP3630
$119.59

 2 Qtr Turn 3
ST483610LG
$708.79

 48.0 51.6 36 10 14 14 EP4836
$185.39

 1 3-point 4
ST242412LG
$406.66

 24.0 28.4 24 12 14 16 EP2424
$64.29

 2 Qtr Turn 2
ST302412LG
$451.44

 30.0 34.4 24 12 14 16 EP3024
$77.59

 2 Qtr Turn 3
ST363012LG
$556.15

 36.0 40.3 30 12 14 14 EP3630
$119.59

 2 Qtr Turn 3
ST363612LG
$616.60

 36.0 40.3 36 12 14 14 EP3636
$139.94

 2 Qtr Turn 3
ST483612LG
$738.72

 48.0 52.3 36 12 14 14 EP4836
$185.39

 1 3-point 4
ST603612LG
$862.65

 60.0 64.3 36 12 14 14 EP6036
$221.49

 1 3-point 4
ST363016LG
$630.38

 36.0 41.8 30 16 14 14 EP3630
$119.59

 2 Qtr Turn 3
ST483616LG
$811.16

 48.0 53.7 36 16 14 14 EP4836
$185.39

 1 3-point 4
ST302420LG
$556.98

 30.0 37.3 24 20 14 14 EP3024
$77.59

 2 Qtr Turn 3
