Eclipse Series

Eclipse Series - NEMA 4, 12
Single Door Enclosures

Application

Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
A wide range of sizes and practical accessories make this product line a complete package.
For high temperature applications, a gasket retainer may be required, please refer to factory.

Standards

UL 508 Type 3R, 4, and 12
CSA Type 3R, 4, and 12
Complies with
- NEMA Type 3R, 4, and 12
- IEC 60529, IP66

Construction

Formed 14 or 16 gauge steel.
Smooth, continuously welded seams ground smooth.
Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
Formed lip on enclosure to exclude flowing liquids and contaminants.
Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
Doors may be easily removed for modifications and are interchangeable.
Oil resistant gaskets are permanently secured.
Collar studs provided for mounting inner panel.
Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
Bonding stud provided on door and grounding stud installed in enclosure.
Hinges are constructed from 304 stainless steel.
Hinge pins are stainless steel.
Quarter turn latch and 3 point handle (key lockable) are zinc diecast with black epoxy finish.

Finish

Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
RAL7032 textured beige (CG) versions with gland plates are available as non-stock items.

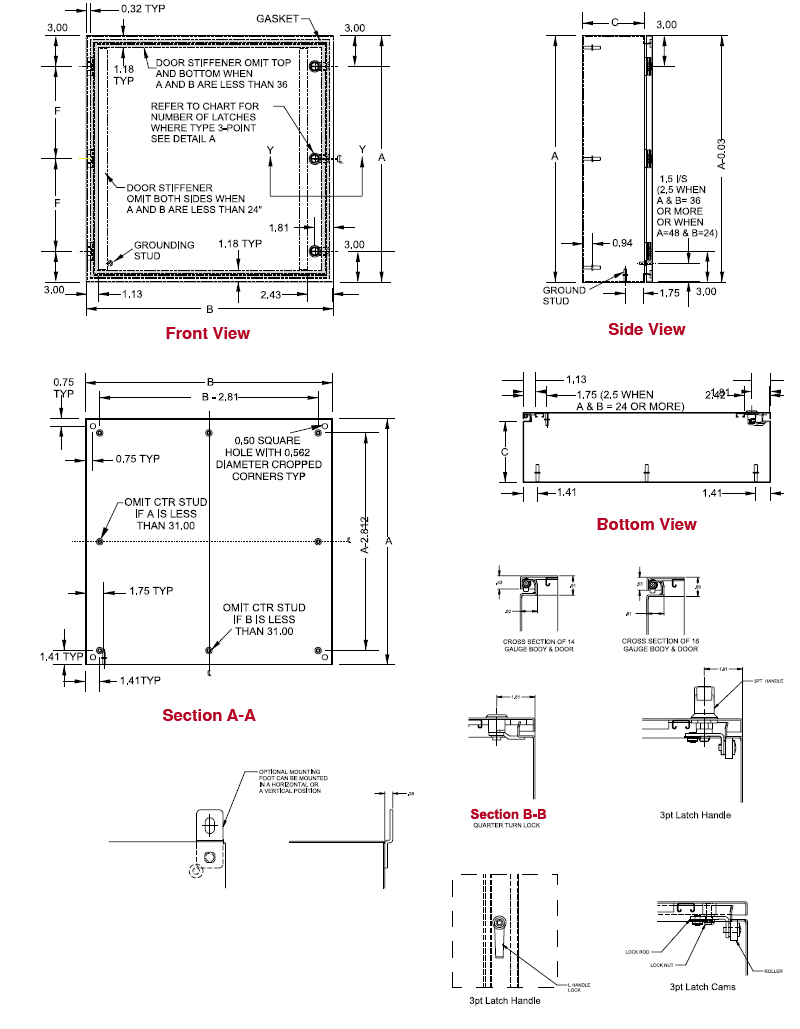

Part No. (ANSI 61 Gray)	Part No. (RAL 7035 Light Gray)	Overall Dimensions			Door/Body Gauge	Latches		Opt. Panel Part No.	Panel Size		# of Hinges		Ship Wt. (lbs)
Part No. (ANSI 61 Gray)	Part No. (RAL 7035 Light Gray)	A	B	C	Door/Body Gauge	Qty	Type	Opt. Panel Part No.	D	E	# of Hinges	F	Ship Wt. (lbs)
EN4SD12126GY $267.68	EN4SD12126LG $281.07	12	12	6	16	1	Qtr Turn	EP1212 $18.75	10.20	10.20	2	6	12
EN4SD12246GY $273.49	EN4SD12246LG $287.17	12	24	6	16	1	Qtr Turn	EP1224 $36.12	10.20	22.20	2	18	24
EN4SD16126GY $204.08	EN4SD6126LG $204.08	16	12	6	16	1	Qtr Turn	EP1612 $12.14	14.20	10.20	2	10	16
EN4SD16166GY $219.70	EN4SD16166LG $219.70	16	16	6	16	1	Qtr Turn	EP1616 $31.36	14.20	14.20	2	10	19
EN4SD16206GY $235.56	EN4SD16206LG $235.56	16	20	6	16	1	Qtr Turn	EP1620 $36.12	14.20	18.20	2	10	22
EN4SD20126GY $222.11	EN4SD20126LG $222.11	20	12	6	16	1	Qtr Turn	EP2012 $30.93	18.20	10.20	2	14	20
EN4SD20166GY $235.56	EN4SD20166LG $235.56	20	16	6	16	1	Qtr Turn	EP2016 $36.12	18.20	14.20	2	14	22
EN4SD20206GY $254.18	EN4SD20206LG $254.18	20	20	6	16	1	Qtr Turn	EP2020 $43.36	18.20	18.20	2	14	26
EN4SD20246GY $279.64	EN4SD20246LG $279.64	20	24	6	16	1	Qtr Turn	EP2412 $36.12	22.20	10.20	2	14	32
EN4SD24126GY $235.70	EN4SD24126LG $235.70	24	12	6	16	1	Qtr Turn	EP2412 $36.12	22.20	10.20	2	18	24
EN4SD24166GY $258.31	EN4SD24166LG $258.31	24	16	6	16	1	Qtr Turn	EP2416 $42.97	22.20	14.20	2	18	26
EN4SD24206GY $280.53	EN4SD24206LG $280.53	24	20	6	16	1	Qtr Turn	EP2420 $55.36	22.20	18.20	2	18	30
EN4SD24246GY $302.55	EN4SD24246LG $302.55	24	24	6	14	2	Qtr Turn	EP2424 $64.29	22.20	22.20	2	18	37
EN4SD30166GY $195.83	EN4SD30166LG $195.83	30	16	6	14	2	Qtr Turn	EP3016 $55.36	28.20	14.20	3	12	35
EN4SD30206GY $305.41	EN4SD30206LG $305.41	30	20	6	14	2	Qtr Turn	EP3020 $68.31	28.20	18.20	3	12	38
EN4SD30246GY $332.60	EN4SD30246LG $332.60	30	24	6	14	2	Qtr Turn	EP3024 $77.59	28.20	22.20	3	12	40
EN4SD36246GY $366.10	EN4SD36246LG $366.10	36	24	6	14	2	Qtr Turn	EP3624 $90.94	34.20	22.20	3	15	52
EN4SD36306GY $410.61	EN4SD36306LG $410.61	36	30	6	14	2	Qtr Turn	EP3630 $119.59	34.20	28.20	3	15	60
EN4SD12248GY $240.59	EN4SD12248LG $240.59	12	24	8	16	1	Qtr Turn	EP1224 $36.12	10.2	22.2	2	6	25
EN4SD16128GY $213.96	EN4SD16128LG $213.96	16	12	8	16	1	Qtr Turn	EP1612 $12.14	14.2	10.2	2	10	16
EN4SD16168GY $231.14	EN4SD16168LG $231.14	16	16	8	16	1	Qtr Turn	EP1616 $31.36	14.2	14.2	2	10	21
EN4SD16208GY $248.26	EN4SD16208LG $248.26	16	20	8	16	1	Qtr Turn	EP1620 $36.12	14.2	18.2	2	10	25
EN4SD20128GY $234.26	EN4SD20128LG $234.26	20	12	8	16	1	Qtr Turn	EP2012 $30.93	18.2	10.2	2	14	22
EN4SD20168GY $248.26	EN4SD20168LG $248.26	20	16	8	16	1	Qtr Turn	EP2016 $36.12	18.2	14.2	2	14	25
EN4SD20208GY $268.44	EN4SD20208LG $268.44	20	20	8	16	1	Qtr Turn	EP2020 $43.36	18.2	18.2	2	14	28
EN4SD20248GY $296.69	EN4SD20248LG $269.69	20	24	8	16	1	Qtr Turn	EP2024 $55.36	18.2	22.2	2	14	32
EN4SD24128GY $249.21	EN4SD24128LG $249.21	24	12	8	16	1	Qtr Turn	EP2412 $36.12	22.2	10.2	2	18	25
EN4SD24168GY $265.44	EN4SD24168LG $265.44	24	16	8	16	1	Qtr Turn	EP2416 $42.97	22.2	14.2	2	18	26
EN4SD24208GY $288.30	EN4SD24208LG $288.30	24	20	8	16	1	Qtr Turn	EP2420 $55.36	22.2	18.2	2	18	32
EN4SD24248GY $311.36	EN4SD24248LG $311.36	24	24	8	14	2	Qtr Turn	EP2424 $64.29	22.2	22.2	2	18	40
EN4SD24308GY $345.72	EN4SD24308LG $345.72	24	30	8	14	2	Qtr Turn	EP2430 $77.59	22.2	28.2	2	18	48
EN4SD30128GY $305.05	EN4SD30128LG $305.05	30	12	8	14	2	Qtr Turn	EP3012 $42.52	28.2	10.2	3	12	34
EN4SD30168GY $310.53	EN4SD30168LG $310.53	30	16	8	14	2	Qtr Turn	EP3016 $55.36	28.2	14.2	3	12	40
EN4SD30208GY $327.64	EN4SD30208LG $327.64	30	20	8	14	2	Qtr Turn	EP3020 $68.31	28.2	18.2	3	12	42
EN4SD30248GY $345.72	EN4SD30248LG $345.72	30	24	8	14	2	Qtr Turn	EP3024 $77.59	28.2	22.2	3	12	46
EN4SD30308GY $386.30	EN4SD30308LG $386.30	30	30	8	14	2	Qtr Turn	EP3030 $102.66	28.2	28.2	3	12	67
EN4SD30368GY $435.69	EN4SD30368LG $435.69	30	36	8	14	2	Qtr Turn	EP3036 $119.59	28.2	34.2	3	12	77
EN4SD36248GY $379.78	EN4SD36248LG $379.78	36	24	8	14	2	Qtr Turn	EP3624 $90.94	34.2	22.2	3	15	55
EN4SD36308GY $426.83	EN4SD36308LG $426.83	36	30	8	14	2	Qtr Turn	EP3630 $119.59	34.2	28.2	3	15	77
EN4SD36368GY $474.07	EN4SD36368LG $474.07	36	36	8	14	2	Qtr Turn	EP3636 $139.94	34.2	34.2	3	15	94
EN4SD42248GY $431.17	EN4SD42248LG $431.17	42	24	8	14	1	3-point	EP4224 $105.88	40.2	22.2	4	12	80
EN4SD42308GY $477.20	EN4SD42308LG $477.20	42	30	8	14	1	3-point	EP4230 $136.07	40.2	28.2	4	12	95
EN4SD42368GY $505.58	EN4SD42368LG $505.58	42	36	8	14	1	3-point	EP4236 $165.02	40.2	34.2	4	12	105
EN4SD48248GY $506.77	EN4SD48248LG $506.77	48	24	8	14	1	3-point	EP4824 $120.69	46.2	22.2	4	14	110
EN4SD48308GY $539.21	EN4SD48308LG $539.21	48	30	8	14	1	3-point	EP4830 $152.29	46.2	28.2	4	14	115
EN4SD48368GY $557.49	EN4SD48368LG $557.49	48	36	8	14	1	3-point	EP4836 $185.39	46.2	34.2	4	14	120
EN4SD60368GY $659.83	EN4SD60368LG $659.83	60	36	8	14	1	3-point	EP6036 $221.49	58.2	34.2	4	18	150
EN4SD161210GY $221.20	EN4SD161210LG $221.20	16	12	10	16	1	Qtr. Turn	EP1612 $12.14	14.2	10.2	2	10	18
EN4SD161610GY $236.77	EN4SD161610LG $236.77	16	16	10	16	1	Qtr. Turn	EP1616 $31.36	14.2	14.2	2	10	23
EN4SD162010GY $254.55	EN4SD162010LG $254.55	16	20	10	16	1	Qtr. Turn	EP1620 $36.12	14.2	18.2	2	10	28
EN4SD201610GY $254.55	EN4SD201610LG $254.55	20	16	10	16	1	Qtr. Turn	EP2016 $36.12	18.2	14.2	2	14	28
EN4SD202010GY $275.86	EN4SD202010LG $275.86	20	20	10	16	1	Qtr. Turn	EP2020 $43.36	18.2	18.2	2	14	31
EN4SD202410GY $295.55	EN4SD202410LG $295.55	20	24	10	16	1	Qtr. Turn	EP2024 $55.36	18.2	22.2	2	14	36
EN4SD241210GY $253.83	EN4SD241210LG $253.83	24	12	10	16	1	Qtr Turn	EP2412 $36.12	22.2	10.2	2	18	26
EN4SD241610GY $272.44	EN4SD241610LG $272.44	24	16	10	16	1	Qtr. Turn	EP2416 $42.97	22.2	14.2	2	18	30
EN4SD242010GY $296.63	EN4SD242010LG $296.63	24	20	10	16	1	Qtr. Turn	EP2420 $55.36	22.2	18.2	2	18	36
EN4SD242410GY $320.52	EN4SD242410LG $320.52	24	24	10	14	2	Qtr. Turn	EP2424 $64.29	22.2	22.2	2	18	45
EN4SD243010GY $355.05	EN4SD243010LG $355.05	24	30	10	14	2	Qtr. Turn	EP2430 $77.59	22.2	28.2	2	18	53
EN4SD302010GY $327.22	EN4SD302010LG $327.22	30	20	10	14	2	Qtr. Turn	EP3020 $68.31	28.2	18.2	3	12	47
EN4SD302410GY $355.84	EN4SD302410LG $355.84	30	24	10	14	2	Qtr. Turn	EP3024 $77.59	28.2	22.2	3	12	53
EN4SD303010GY $397.87	EN4SD303010LG $397.87	30	30	10	14	2	Qtr. Turn	EP3030 $102.66	28.2	28.2	3	12	75
EN4SD362410GY $391.51	EN4SD362410LG $391.51	36	24	10	14	2	Qtr. Turn	EP3624 $90.94	34.2	22.2	3	15	70
EN4SD363010GY $439.59	EN4SD363010LG $439.59	36	30	10	14	2	Qtr. Turn	EP3630 $119.59	34.2	28.2	3	15	84
EN4SD363610GY $487.48	EN4SD363610LG $487.48	36	36	10	14	2	Qtr. Turn	EP3636 $139.94	34.2	34.2	3	15	100
EN4SD423010GY $504.71	EN4SD423010LG $504.71	42	30	10	14	1	3-point	EP4230 $136.07	40.2	28.2	4	12	107
EN4SD423610GY $553.69	EN4SD423610LG $553.69	42	36	10	14	1	3-point	EP4236 $165.02	40.2	34.2	4	12	117
EN4SD482410GY $587.87	EN4SD482410LG $587.87	48	24	10	14	1	3-point	EP4824 $120.69	46.2	22.2	4	14	95
EN4SD483010GY $561.41	EN4SD483010LG $561.41	48	30	10	14	1	3-point	EP4830 $152.29	46.2	28.2	4	14	120
EN4SD483610GY $602.84	EN4SD483610LG $602.84	48	36	10	14	1	3-point	EP4836 $185.39	46.2	34.2	4	14	125
EN4SD603610GY $701.61	EN4SD603610LG $701.61	60	36	10	14	1	3-point	EP6036 $221.49	58.2	34.2	4	18	150
EN4SD201612GY $283.58	EN4SD201612LG $283.58	20	16	12	16	1	Qtr Turn	EP2016 $36.12	18.2	14.2	2	14	32
EN4SD202012GY $305.55	EN4SD202012LG $305.55	20	20	12	16	1	Qtr Turn	EP2020 $43.36	18.2	18.2	2	14	34
EN4SD242012GY $329.14	EN4SD242012LG $329.14	24	20	12	16	1	Qtr Turn	EP2420 $55.36	22.2	18.2	2	18	38
EN4SD242412GY $345.72	EN4SD242412LG $345.72	24	24	12	14	2	Qtr Turn	EP2424 $64.29	22.2	22.2	2	18	47
EN4SD302412GY $384.15	EN4SD302412LG $384.15	30	24	12	14	2	Qtr Turn	EP3024 $77.59	28.2	22.2	3	12	57
EN4SD303012GY $429.30	EN4SD303012LG $429.30	30	30	12	14	2	Qtr Turn	EP3030 $102.66	28.2	28.2	3	12	80
EN4SD362412GY $434.85	EN4SD362412LG $434.85	36	24	12	14	2	Qtr Turn	EP3624 $90.94	34.2	22.2	3	15	62
EN4SD363012GY $474.07	EN4SD363012LG $474.07	36	30	12	14	2	Qtr Turn	EP3630 $119.59	34.2	28.2	3	15	91
EN4SD363612GY $540.76	EN4SD363612LG $540.76	36	36	12	14	2	Qtr Turn	EP3636 $139.94	34.2	34.2	3	15	104
EN4SD423012GY $532.48	EN4SD423012LG $532.48	42	30	12	14	1	3-point	EP4230 $136.07	40.2	28.2	4	12	111
EN4SD423612GY $577.15	EN4SD423612LG $577.15	42	36	12	14	1	3-point	EP4236 $165.02	40.2	34.2	4	12	121
EN4SD482412GY $581.04	EN4SD482412LG $581.04	48	24	12	14	1	3-point	EP4824 $120.69	46.2	22.2	4	14	98
EN4SD483612GY $628.59	EN4SD483612LG $628.59	48	36	12	14	1	3-point	EP4836 $185.39	46.2	34.2	4	14	148
EN4SD603612GY $731.54	EN4SD603612LG $731.54	60	36	12	14	1	3-point	EP6036 $221.49	58.2	34.2	4	18	165
EN4SD723012GY $732.24	EN4SD723012LG $732.24	72	30	12	14	2	Qtr Turn, 3-point	EP7230 $242.49	70.2	28.2	5	16.5	190
EN4SD723612GY $837.65	EN4SD723612LG $837.65	72	36	12	14	2	Qtr Turn, 3-point	EP7236 $262.89	70.2	34.2	5	16.5	195
EN4SD242016GY $362.95	EN4SD242016LG $362.95	24	20	16	16	1	Qtr Turn	EP2420 $55.36	22.2	18.2	2	18	52
EN4SD242416GY $390.98	EN4SD242416LG $390.98	24	24	16	14	2	Qtr Turn	EP2424 $64.29	22.2	22.2	2	18	66
EN4SD302416GY $434.64	EN4SD302416LG $434.64	30	24	16	14	2	Qtr Turn	EP3024 $77.59	28.2	22.2	3	12	85
EN4SD363016GY $536.21	EN4SD363016LG $536.21	36	30	16	14	2	Qtr Turn	EP3630 $119.59	34.2	28.2	3	15	102
EN4SD423616GY $646.60	EN4SD423616LG $646.60	42	36	16	14	1	3-point	EP4236 $165.02	40.2	34.2	4	12	140
EN4SD483616GY $688.45	EN4SD483616LG $688.45	48	36	16	14	1	3-point	EP4836 $185.39	46.2	34.2	4	14	148
EN4SD603616GY $820.96	EN4SD603616LG $820.96	60	36	16	14	1	3-point	EP6036 $221.49	58.2	34.2	4	18	200
EN4SD723016GY $827.23	EN4SD723016LG $827.23	72	30	16	14	2	Qtr Turn, 3-point	EP7230 $242.49	70.2	28.2	5	16.5	215
EN4SD723616GY $900.47	EN4SD723616LG $900.47	72	36	16	14	2	Qtr Turn, 3-point	EP7236 $262.89	70.2	34.2	5	16.5	217
EN4SD242420GY $425.88	EN4SD242420LG $425.88	24	24	20	14	2	Qtr Turn	EP2424 $64.29	22.2	22.2	2	18	70
EN4SD302420GY $474.61	EN4SD302420LG $474.61	30	24	20	14	2	Qtr Turn	EP3024 $77.59	28.2	22.2	3	12	82
EN4SD363020GY $585.00	EN4SD363020LG $585.00	36	30	20	14	2	Qtr Turn	EP3630 $119.59	34.2	28.2	3	15	117
EN4SD483620GY $766.43	EN4SD483620LG $766.43	48	36	20	14	1	3-point	EP4836 $185.39	46.2	34.2	4	14	165
EN4SD603620GY $659.83	EN4SD603620LG $659.83	60	36	20	14	1	3-point	EP6036 $221.49	58.2	34.2	4	18	210
EN4SD723020GY $882.24	EN4SD723020LG $882.24	72	30	20	14	2	Qtr Turn, 3-point	EP7230 $242.49	70.2	28.2	5	16.5	217
EN4SD302424GY $516.91	EN4SD302424LG $516.91	30	24	24	14	2	Qtr Turn	EP3024 $77.59	28.2	22.2	3	12	115
EN4SD723024GY $942.21	EN4SD723024LG $942.21	72	30	24	14	2	Qtr Turn, 3-point	EP7230 $242.49	70.2	28.2	5	16.5	220
