1436/1438 Series Junction Boxes - NEMA 12, 13
Lift Off, Screw Cover

Application

  • Designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures.
  • Provides a degree of protection from falling dirt, dust, oil and water.

Standards
  • UL 508 Type 12 and 13
  • CSA Type 12 and 13
  • Complies with
    • NEMA Type 12 and 13
    • IEC 60529, IP54

Construction
  • Formed from 14 gauge steel.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Welded brackets provide for enclosure mounting.
  • Lift off cover is secured with captive, plated steel screws, and supported on internal hinges except as noted on charts at bottom and right.
  • Cover screws fasten into threaded, sealed wells.
  • Oil resistant gaskets are permanently secured.
  • A grounding stud is provided in the enclosure.

Finish
  • Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.

Back to Top

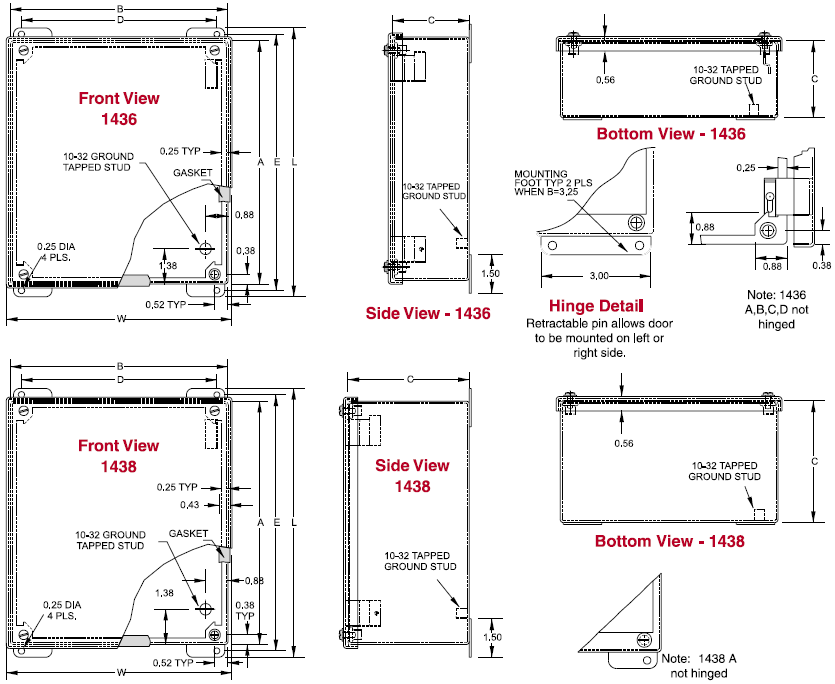

Standard Depth Series (1436) Centers Overall Dimensions Ship Wt.
lbs
Part No. A B C D E L W
1436A¹
$45.65

 3.50 3.25 2.75 2.38 4.00 4.50 3.56 2
1436B¹
$52.14

 5.75 3.25 2.75 2.38 6.25 6.75 3.56 2
1436C¹
$58.59

 8.00 3.25 2.75 2.38 8.50 9.00 3.56 3
1436D¹
$65.04

 10.25 3.25 2.75 2.38 10.75 11.25 3.56 4
1436F
$71.82

 7.25 6.25 3.00 5.38 7.75 8.25 6.56 5
1436H
$82.57

 9.50 6.25 3.00 5.38 10.00 10.50 6.56 5
1436K
$95.61

 9.50 8.50 3.00 7.63 10.00 10.50 8.81 7
1436O
$111.22

 11.75 8.50 3.00 7.63 12.25 12.75 8.81 8
1436S
$140.59

 11.75 10.75 3.00 9.88 12.25 12.75 11.06 9
1436V
$152.88

 14.00 10.75 3.00 9.88 14.50 15.00 11.06 11
1436X
$164.67

 14.00 13.00 3.00 12.13 14.50 15.00 13.31 12
1436-30
$220.47

 16.25 13.00 3.00 12.13 16.75 17.25 13.31 14
1436-36
$245.57

 16.25 15.25 3.00 14.38 16.75 17.25 15.56 16
1436-42
$260.47

 18.50 15.25 3.00 14.38 19.00 19.50 15.56 18

¹ Not Hinged

Extra Deep Series (1438) Centers Overall Dimensions Ship Wt.
lbs
Part No. A B C D E L W
1438A¹
$59.23

 4.00 4.00 4.75 3.13 4.50 5.00 4.31 3.00
1438B
$64.85

 6.00 4.00 4.75 3.13 6.50 7.00 4.31 4.00
1438C
$73.04

 8.00 4.00 4.75 3.13 8.50 9.00 4.31 5.00
1438D
$81.37

 10.00 4.00 4.75 3.13 10.50 11.00 4.31 5.00
1438F
$87.12

 7.25 6.25 4.75 5.38 7.75 8.25 6.56 5.00
1438H
$94.58

 9.50 6.25 4.75 5.38 10.00 10.50 6.56 5.00
1438K
$109.82

 9.50 8.50 4.75 7.63 10.00 10.50 8.81 7.00
1438O
$123.90

 11.75 8.50 4.75 7.63 12.25 12.75 8.81 8.00
1438S
$149.09

 11.75 10.75 4.75 9.88 12.25 12.75 11.06 9.00
1438V
$158.09

 14.00 10.75 4.75 9.88 14.50 15.00 11.06 11.00
1438X
$187.70

 14.00 13.00 4.75 12.13 14.50 15.00 13.31 12.00
1438-30
$204.23

 16.25 13.00 4.75 12.13 16.75 17.25 13.31 14.00
1438-36
$226.49

 16.25 15.25 4.75 14.38 16.75 17.25 15.56 16.00
1438-42
$245.34

 18.50 15.25 4.75 14.38 19.00 19.50 15.56 18.00

¹ Not Hinged
