1418J Series - NEMA 12
Application

  • Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
  • Provides a degree of protection from falling dirt, dust, oil and water.

Standards
  • UL 508 Type 12
  • Complies with
    • NEMA Type 12
    • JIC EGP-1-1967 unless marked¹
    • IEC 60529, IP54


Construction
  • Formed from 14 gauge steel.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Door and body stiffeners are provided in the larger enclosures for extra rigidity.
  • Welded brackets provide for enclosure mounting.
  • Continuously hinged cover is secured with plated screws, threaded into sealed wells.
  • Oil resistant gaskets are permanently secured.
  • A removable 12 gauge inner panel is included.
  • Collar studs are provided for mounting inner panels.
  • A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
  • A literature pocket is provided for the inside of the door.

Finish
  • Cover and enclosure are phosphat­­ized and finished in ANSI 61 gray recoatable powder coating.
  • Removable inner panel is finished in white powder coating.

Back to Top

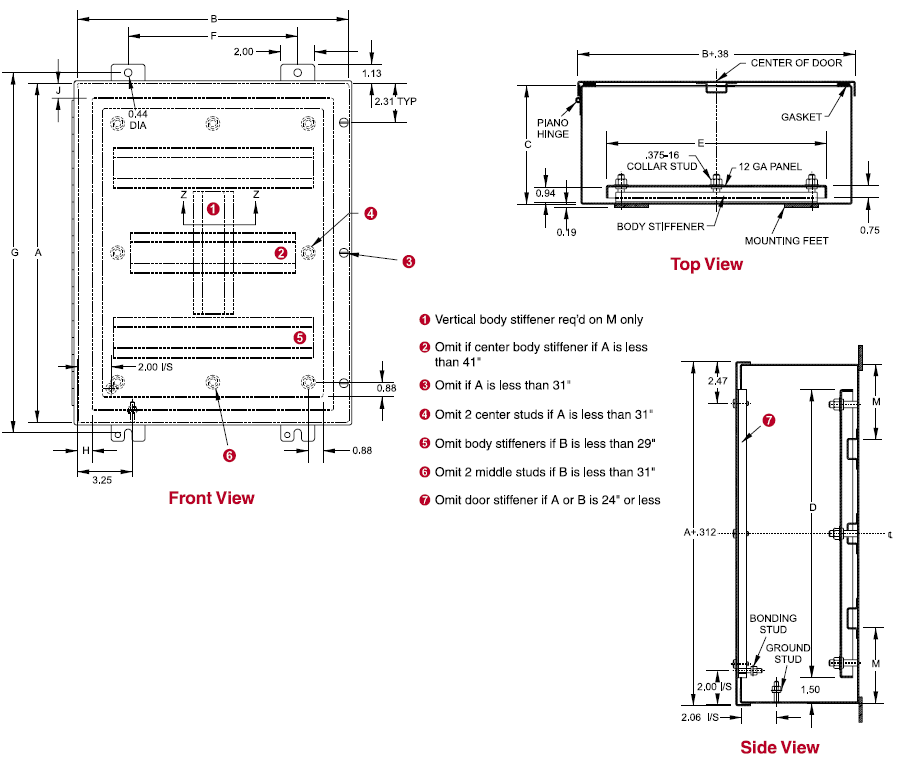

Part No. A B C Panel Dimensions Centers H J Ship Wt.
(lbs)
D E F G
1418JB7
$281.99

 16 12 7 13 9 6 17.25 0.88 0.50 30
1418JC7
$311.71

 20 16 7 17 13 10 21.25 0.88 0.88 38
1418JD7
$348.89

 20 20 7 17 17 14 21.25 0.88 0.50 45
1418JE7
$391.23

 24 20 7 21 17 14 25.25 0.88 0.50 54
1418JJ7
$433.71

 24 24 7 21 21 18 25.25 0.88 0.50 63
1418JF7
$447.22

 30 20 7 27 17 14 31.25 0.88 0.50 70
1418JK7
$498.62

 30 24 7 27 21 18 31.25 0.88 0.50 78
1418JL7
$565.40

 36 24 7 33 21 18 37.25 0.88 0.50 90
1418JC9
$331.34

 20 16 9 17 13 10 21.25 0.88 0.50 42
1418JD9
$370.78

 20 20 9 17 17 14 21.25 0.88 0.50 45
1418JE9
$415.31

 24 20 9 21 17 14 25.25 0.88 0.50 60
1418JJ9
$460.11

 24 24 9 21 21 18 25.25 0.88 0.50 67
1418JK9
$527.95

 30 24 9 27 21 18 31.25 0.88 0.50 85
1418JF9
$474.29

 30 20 9 27 17 14 31.25 0.88 0.50 70
1418JM9
$703.16

 36 30 9 33 27 24 37.25 1.38 1.38 120
1418JL9
$598.18

 36 24 9 33 21 18 37.25 0.88 0.50 100
1418JO9¹
$757.61

 42 30 9 39 27 24 43.25 1.38 1.38 137
1418JP9¹
$865.16

 42 36 9 39 33 30 43.25 1.38 1.38 165
1418JJ11
$509.82

 24 24 11 21 21 18 25.25 0.88 0.50 73
1418JL11
$631.44

 36 24 11 33 21 18 37.25 0.88 0.50 107
1418JS11¹
$1012.06

 48 36 11 45 33 30 49.25 1.38 1.38 187
1418JK13
$587.41

 30 24 13 27 21 18 31.25 0.88 0.50 94
1418JM13
$775.82

 36 30 13 33 27 24 37.25 1.38 1.38 131

¹ Does not meet JIC requirements

When A= M=
30 7.00
36 9.00
42 9.88
48 11.38
