1414 Series Enclosures - NEMA 12, 13
Clamped, Lift Off Cover
Application

  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides a degree of protection from falling dirt, dust, oil and water.

Standards
  • UL 508 Type 12 and 13
  • CSA Type 12 and 13
  • Complies with
    • NEMA Type 12 and 13
    • JIC EGP-1-1967 unless marked¹
    • IEC 60529, IP54

Construction
  • Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Welded brackets provide for enclosure mounting.
  • Lift off cover is secured with stainless steel clamps and plated steel screws and retained with a plated chain when open.
  • Oil resistant gaskets are permanently secured.
  • Models larger than 4" x 4" include a removable 14 gauge inner panel.
  • Internal threaded weld studs are provided for mounting inner panels.
  • A grounding stud is provided in the enclosure.

Finish
  • Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
  • Removable inner panel is finished in white powder coating.
Back to Top

Part No. A B C D E F G H J L N Cover

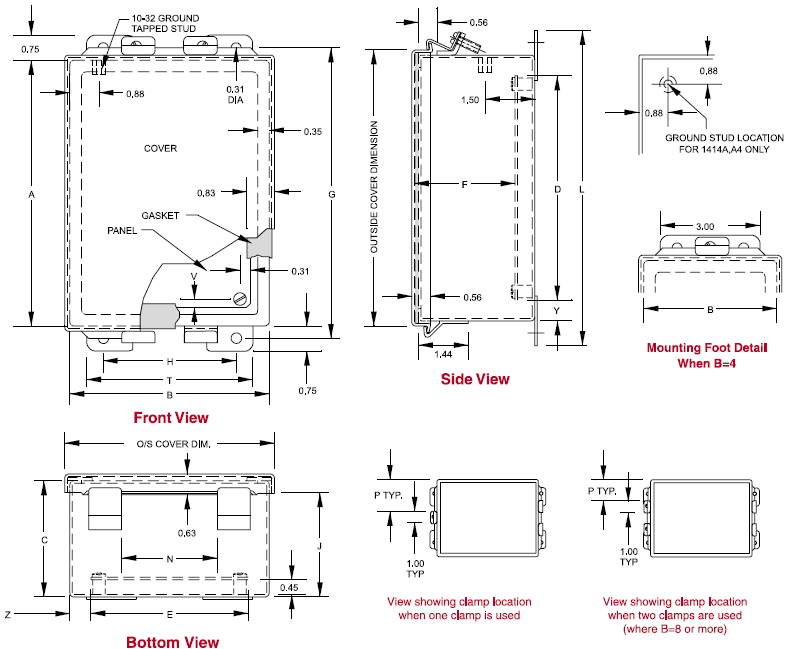

Dimensions 		P T V Y Z Ship
Wt.
(lbs)
1414A¹
$39.37

 4.0 40.0 3.0 — — — 4.75 2.00 2 .64 5.50 1.31 4.31 4.31 1.50 3.00 — — — 2
1414C¹
$47.88

 6.0 4.0 3.0 4.88 2.88 2.51 6.75 2.00 2.64 7.50 1.31 6.31 4.31 1.50 3.00 0.31 0.56 0.56 3
1414G
$59.81

 8.0 6.0 3.5 6.75 4.88 3.01 8.75 4.00 3.14 9.50 2.88 8.31 6.31 2.50 5.00 0.25 0.63 0.56 7
1414A4¹
$41.51

 4.0 4.0 4.0 — — — 4.75 2.00 3.64 5.50 1.31 4.31 4.31 1.50 3.00 — — — 3
1414C4¹
$51.65

 6.0 4.0 4.0 4.88 2.88 3.51 6.75 2.00 3.64 7.50 1.31 6.31 4.31 1.50 3.00 0.31 0.56 0.56 4
1414E
$56.00

 6.0 6.0 4.0 4.88 4.88 3.51 6.75 4.00 3.64 7.50 2.88 6.31 6.31 2.50 5.00 0.31 0.56 0.56 5
1414I
$75.05

 10.0 8.0 4.0 8.75 6.88 3.51 10.75 6.00 3.64 11.50 4.00 10.31 8.31 1.00 7.00 0.25 0.63 0.56 10
1414K
$96.42

 12.0 10.0 5.0 10.75 8.88 4.51 12.75 8.00 4.64 13.50 6.00 12.31 10.31 1.00 9.00 0.25 0.63 0.56 13
1414M6
$125.24

 14.0 12.0 6.0 12.75 10.88 5.51 14.75 10.00 5.64 15.50 8.00 14.31 12.31 1.00 11.00 0.25 0.63 0.56 19
1414O6
$179.97

 16.0 14.0 6.0 14.75 12.88 5.51 16.75 12.00 5.64 17.50 10.00 16.31 14.31 1.00 13.00 0.25 0.63 0.56 23
1414M8
$167.29

 14.0 12.0 8.0 12.75 10.88 7.51 14.75 10.00 7.64 15.50 8.00 14.31 12.31 1.00 11.00 0.25 0.63 0.56 20
1414O10
$221.61

 16.0 14.0 10.0 14.75 12.88 9.51 16.75 12.00 9.64 17.50 10.00 16.31 14.31 1.00 13.00 0.25 0.63 0.56 25

¹ Does not meet JIC Requirements
