1414 PH Series Enclosures - NEMA 12, 13
Continuous Hinge, Clamped Cover
Application

  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides a degree of protection from falling dirt, dust, oil and water.


Standards
  • UL 508 Type 12, 13
  • CSA Type 12, 13
  • Complies with
    • NEMA Type 12 and 13
    • JIC EGP-1-1967 unless marked¹
    • IEC 60529, IP54


Construction
  • Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Welded brackets provide for enclosure mounting.
  • Continuously hinged cover is secured with stainless steel clamps and plated steel screws.
  • Oil resistant gaskets are permanently secured.
  • Models larger than 4" x 4" include a removable 14 gauge inner panel.
  • Internal threaded weld studs are provided for mounting inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure.

Finish
  • Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
  • Removable inner panel is finished in white powder coating.
Back to Top

Part No.With
Inner Panel		 Part No.Without
Inner Panel		 Panel Size Cover
Dimensions		   Ship
wt.
with
pnl		 Ship
wt.
w/out
pnl

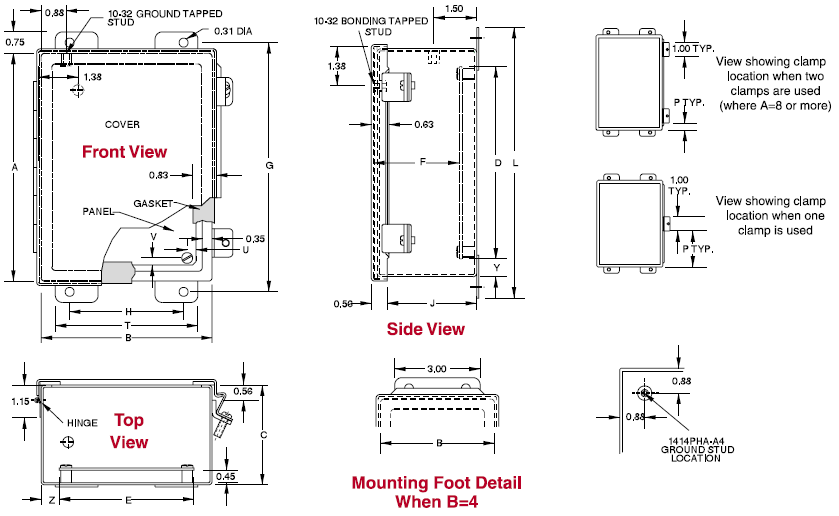

A B C D E F G H J L P T U V Y Z
— 1414PHA¹
$39.82

 4 4 3 — — — 4.75 2 2.64 5.5 4.31 4.31 1.5 3 — — — — — 2
1414PHC¹
$49.27

 1414PHCLP¹
$45.61

 6 4 3 4.88 2.88 2.51 6.75 2 2.64 7.5 6.31 4.31 2.5 3 .31 .31 .56 .56 3 2
1414PHG
$59.98

 1414PHGLP
$54.88

 8 6 3.5 6.75 4.88 31 8.75 4 3.14 9.5 8.31 6.31 1 5 .31 .25 .63 .56 6 5
1414PHRG
$59.98

 1414PHRGLP
$54.88

 6 8 3.5 4.88 6.75 31 6.75 6 3.14 7.5 6.31 8.31 2.5 7 .25 .31 .56 .63 6 5
— 1414PHA4¹
$41.55

 4 4 4 — — — 4.75 2 3.64 5.5 4.31 4.31 1.5 3 — — — — — 3
1414PHC4¹
$51.84

 1414PHC4LP¹
$48.19

 6 4 4 4.88 2.88 3.51 6.75 2 3.64 7.5 6.31 4.31 2.5 3 .31 .31 .56 .56 4 3
1414PHE
$56.08

 1414PHELP
$51.67

 6 6 4 4.88 4.88 3.51 6.75 4 3.64 7.5 6.31 6.31 2.5 5 .31 .31 .56 .56 5 4
1414PHH4
$68.24

 1414PHH4LP
$62.29

 8 8 4 6.75 6.88 3.51 8.75 6 3.64 9.5 8.31 8.31 1 7 .31 .25 .63 .56 8 7
1414PHI
$75.12

 1414PHILP
$68.18

 10 8 4 8.75 6.88 3.51 1.75 6 3.64 11.5 1.31 8.31 1 7 .31 .25 .63 .56 1 8
1414PHRI
$74.44

 1414PHRILP
$67.51

 8 10 4 6.88 8.75 3.51 8.75 8 3.64 9.5 8.31 1.31 1 9 .25 .31 .56 .63 1 8
1414PHKC4
$74.58

 1414PHKC4LP
$68.05

 12 6 4 1.75 4.88 3.51 12.75 4 3.64 13.5 12.31 6.31 1 5 .31 .25 .63 .56 10 8
1414PHK
$96.49

 1414PHKLP
$87.09

 12 10 5 1.75 8.88 4.51 12.75 8 4.64 13.5 12.31 1.31 1 9 .31 .25 .63 .56 13 10
1414PHRK
$95.70

 1414PHRKLP
$86.31

 10 12 5 8.88 1.75 4.51 1.75 10 4.64 11.5 1.31 12.31 1 11 .25 .31 .56 .63 13 12
1414PHG6
$70.25

 1414PHG6LP
$65.16

 8 6 6 6.75 4.88 5.51 8.75 4 5.64 9.5 8.31 6.31 1 5 .31 .25 .63 .56 8 7
1414PHI6
$83.80

 1414PHI6LP
$76.86

 10 8 6 8.75 6.88 5.51 1.75 6 5.64 11.5 1.31 8.31 1 7 .31 .25 .63 .56 12 10
1414PHJ6
$93.07

 1414PHJ6LP
$84.85

 10 10 6 8.75 8.88 5.51 1.75 8 5.64 11.5 1.31 1.31 1 9 .31 .25 .63 .56 14 12
1414PHL6
$112.28

 1414PHL6LP
$101.22

 12 12 6 1.75 1.88 5.51 12.75 10 5.64 13.5 12.31 12.31 1 11 .31 .25 .63 .56 17 15
1414PHMH6
$102.19

 1414PHMH6LP
$93.16

 14 8 6 12.75 6.88 5.51 14.75 6 5.64 15.5 14.31 8.31 1 7 .31 .25 .63 .56 12 10
1414PHM6
$122.21

 1414PHM6LP
$109.89

 14 12 6 12.75 1.88 5.51 14.75 10 5.64 15.5 14.31 12.31 1 11 .31 .25 .63 .56 19 17
1414PHRM6
$121.18

 1414PHRM6LP
$108.85

 12 14 6 1.88 12.75 5.51 12.75 12 5.64 13.5 12.31 14.31 1 13 .25 .31 .56 .63 19 17
1414PHN6
$123.12

 1414PHN6LP
$111.05

 16 10 6 14.75 8.88 5.51 16.75 8 5.64 17.5 16.31 1.31 1 9 .31 .25 .63 .56 18 15
1414PHO6
$145.60

 1414PHO6LP
$129.28

 16 14 6 14.75 12.88 5.51 16.75 12 5.64 17.5 16.31 14.31 1 13 .31 .25 .63 .56 23 21
1414PHRO6
$144.40

 1414PHRO6LP
$128.06

 14 16 6 12.88 14.75 5.51 14.75 14 5.64 15.5 14.31 16.31 1 15 .25 .31 .56 .63 23 21
1414PHK8
$115.43

 1414PHK8LP
$106.02

 12 10 8 1.75 8.88 7.51 12.75 8 7.64 13.5 12.31 1.31 1 9 .31 .25 .63 .56 18 15
1414PHM8
$138.24

 1414PHM8LP
$125.92

 14 12 8 12.75 1.88 7.51 14.75 10 7.64 15.5 14.31 12.31 1 11 .31 .25 .63 .56 20 18
1414PHO8
$160.06

 1414PHO8LP
$143.72

 16 14 8 14.75 12.88 7.51 16.75 12 7.64 17.5 16.31 14.31 1 13 .31 .25 .63 .56 25 22
1414PHO10
$179.24

 1414PHO10LP
$162.90

 16 14 10 14.75 12.88 9.51 16.75 12 9.64 17.5 16.31 14.31 1 13 .31 .25 .63 .56 26 23

¹Does not meet JIC requirements
