Alarm Contacts

Mini Type Magnetic Switch

DK6790

$5.85


White Black

Window contact

Operating gap 2.3 cm max.
Size: 33.7 x 13.4 x 6.9mm

Recessed Alarm Contact

RAC1

 $5.85



Alarm contact

Recessed magnetic reed switch
Mounting hole 9.5mm diameter
Contacts normally open

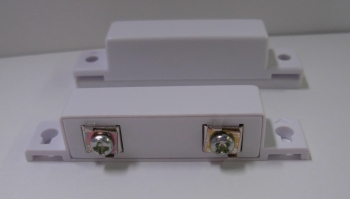

MCS-3102

 $5.85



MAGNETIC SWITCH

Magnetic reed switch for security alarms.
 normally closed contacts. (Closed Loop)
 Screw terminals with cover.

Dim: 65 x 19.2 x 5  mm

100 V  500ma

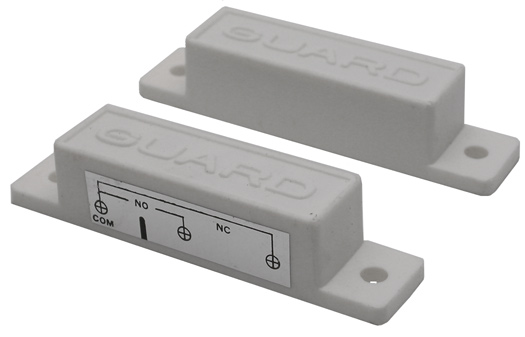

47-600-0

 $5.85



MAGNETIC SWITCH


Magnetic reed switch for security alarms.
Has normally open and normally closed switch contacts.
Screw terminals. 12VDC@500ma

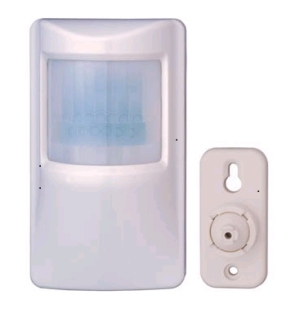

PIR MOTION DETECTOR

GW-2712




$ 19.99




GW-2712 ¡V GENERAL PURPOSE PIR MOTION DETECTOR

GW-2712 is a general purpose PIR motion detector. It is designed to give a cost effective and reliable solution for residential and commercial security systems.

GW-2712 employs low noise dual-element pyro-electric sensor for motion detection and an MCU device in security logic and environment controls.

The alternate polarity signal processor inside the MCU has very high rejection to the common mode noise due to radio interference or power surges. The MCU device also provides the function of digital pulse counting, power-up delay and alarm output timing and controls. All of which maximizes security and false alarm immunity.

FEATURES


  • Low Noise Dual Element Pyro-Sensor
  • Alternate Polarity Signal Processing
  • Security Logics Are Integrated in The MCU Device
  • Surface-Mounted Component Technology, Greater EMI and RFI Immunity
  • Normal or Pulse Count Response for Harsh Environments
  • Supplied with Swivel Mounting Bracket for Angle Adjustment



SPECIFICATIONS



  • Operating Voltage : 8-16VDC
  • Current Drain : 15mA at 12VDC
  • Power-up Delay : 2 Minutes Typical with Flashing LED indication
  • Alarm Output : N.C. or N.O. Contact, 28VDC/100mA Rating
  • Alarm Period : 2-3 Seconds for Each Detection Output
  • Power Up Delay : 2 Minutes with Flashing LED
  • Pulse Count : 1 or 2 Alternate Polarity Pulses in 10 Seconds
  • Detection Pattern : 12 X 12 Metre, 90 Deg Maximum
  • Tamper Switch : N.C. Contact with 10 Ohm in Line Resistor. 12VDC/50mA Rating
  • Operating Temperature : 0 Deg C to 55 Deg C
  • Dimensions: 105(H) X 60(W) X 42(D) mm




Surface or Flush Mount

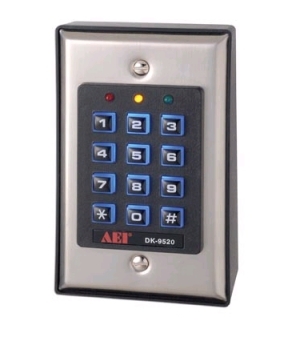

GW-9520



$ 25.00

GW-9520 ¡V SINGLE RELAY OUTPUT DIGITAL ACCESS CONTROL KEYPAD

GW-9520 is the simplified version of the GW-9521, mainly designed for stand-alone electric door lock installation. Its 5 Amp output relay provides N.C. and N.O. dry contacts for door strike and virtually compatible with any electric locking devices. Except the inter-lock and door monitoring facilities, the keypad has most of the basic features just like the other keypads in this series. A slim-line surface mount box in Beige color is supplied with each keypad. The box in Black color is also available on request when place order.

The GW-9520 is available in Back-lit keyboard or in Standard keyboard. The order number for Back-lit version is GW-9520BL, for Standard version is GW-9520.

FEATURES

* Direct 12-24V AC/DC Operation
* Over 100 Million Code Combinations
* 100 User Codes with 4-8 Digits
* Operates Fail-safe or Fail-secure Locking Device
* Door Lock Inhibit Authorization
* One 5 Amp Relay Output with N.C. & N.O. Contacts
* Auto or Manual Code Entry
* Output Activation Announcer
* Pacifier Tone Inhibit Control
* Egress Input for Door Remote Triggering
* All Features are Keyboard Programmable
* Non-volatile Memory in Power Failure
* Flush or Surface Mount
* Surface Mount Box in Beige (Standard Version) or Black (Back-lit Version)
* Size : 116(H) X 72(W) X 43(D) mm

Surface Mount

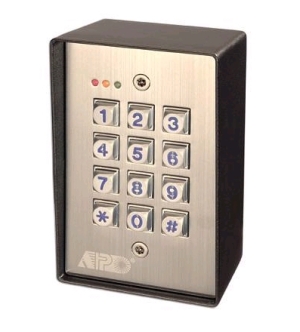

GW-2850



$ 89.00

GW-2850 ¡V METAL BACK-LIT KEYS, VANDAL RESISTANT, WEATHERPROOF, DUAL RELAY DIGITAL ACCESS CONTROL KEYPAD

GW-2850 is a full feature keypad system. It consists of 2 relay outputs controlled by 2 groups of independent User Codes. Output 1 is a 5 Amp rating relay providing both N.C. and N.O. dry contacts for door strike, Output 2 is a 1 Amp rating relay also providing N.C. and N.O. dry contacts for other control applications, such as controlling of an alarm system. Three on board LED lamps are wired internally to indicate the operation status of the outputs 1 and 2 and the system status. The keypad utilizes terminal block for all the external connections.

MAIN FEATURES ¡V GW-2850


  • Back-lit Metal Button Keypad
  • 1.5mm Stainless Steel Face Plate
  • Vandal Resistant & Weatherproof
  • Die Cast Metal Housing
  • Direct 12-24V AC/DC Operation
  • Dual Relay Output
  • 100 User PIN for Output 1
  • 10 User PIN for Output 2
  • Surface Mount or Post Mounting
  • Fits Single Gang Flush Mount Box
  • Dimensions: 125(H) X 79(W) X 46/54(D: bottom side/upper side) mm

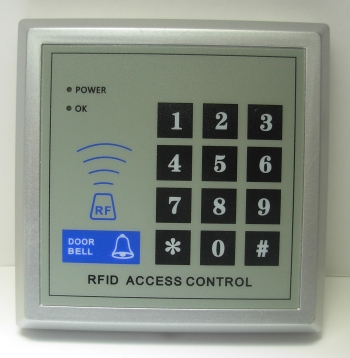

RFID Access Control


with 20 keys
$ 29.00

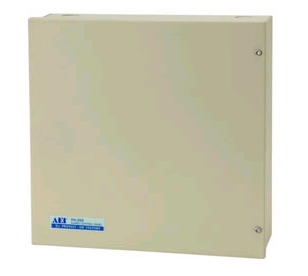

CS 8-ZONE DIALER ALARM KIT


GW-268






$99.90


GW-268 ¡V 8-ZONE ALARM CONTROL PANEL WITH AUTO-DIALER

GW-268 is an auto-dialer alarm control panel with 8 hardware protection zones and 2 software zones for panic and duress alarms, which is designed for home and office protections. The system gives local alarm warnings as like the traditional alarm systems as well as sending voice message to 4 telephones of pre-set numbers when alarm occurs. The auto dialer is compatible with all the public telephone systems. The control panel comes with one control console for ready installation. Each GW-268 comes with one alarm control panel and one full feature master control console. Auxiliary control consoles can be purchased separately. Both types of consoles are back lighting and have the same function except the built-in microphone for message recording is not available on the auxiliary control console.

FEATURES FOR ALARM
  • 8 Zones, Programmable for Instant, Delay (2 delay time available), 24 Hour Instant or 24 Hour Silent Alarm Reporting
  • Programmable Master Code and 8 User Codes
  • All User Codes with Duress Function
  • Protection Zones are Programmable for Single or Multiple Triggering
  • Programmable Time for Exit, Entry (2 timings) and Alarm Duration
  • Arm-Disarm Control from Keypad or Remotely from Any DTMF Telephone mobile Phone
  • Each Protection Zone is Programmable for Response Time
  • Exit and Entry Warning Beeps On-Off Options
  • Arm-Disarm Ring Back Indication On-Off Options
  • Instant Arming Codes for Home and Away Operations
  • Built-in Dynamic Battery Charger and Tester with Auto or Manual Testing Options
  • Two On Board Software Zone for Panic and Duress Alarms
  • Maximum 4 Control Keypads Can Be Connected
  • Home or Away Operation
  • Forced to Arm or Arm Prohibited Options
  • Handover Option for The Instant Zones
  • Facilities for Driving Siren/Bell, Satellite Siren and Strobe Light
  • Power Low Watchdog Resets System
  • Non-Volatile Memory
  • Can be Arm-Disarmed by Conventional Key Switch
  • Full Feature Default Values in System for Ready Use
  • 12V / 6.5Ah Back-up Battery (Not Included)
  • 16.5VAC Operation
  • Weight: 2.2 Kg (The Control Panel); 220 g (The Keypad)
  • Dimensions: 268(H) X 263(W) X 78(D) mm (The Control Panel); 117(H) X 117(W) X 27(D) mm (The Keypad)


FEATURES FOR AUTO-DIALER

  • Four 32 Digit Telephone Numbers for Auto-Dialer
  • Two 32 Digit Telephone Numbers for Communicator
  • Communicator Data in DTMF Format with Check-sum
  • Tone or Pulse Dialing
  • Programmable Pause Time between Any Digits
  • Voice Message and Numeric Message are Possible
  • 20 Seconds Non-Volatile User Programmable Voice Message
  • Controllable Listen-in Duration
  • Back-up or Non-back-up Dialing for Alarm Reporting
  • Automatic Telephone Line Fault Detection
  • Programmable Dialing Attempts, 8 Maximum
  • Programmable Message Repeats, 8 Maximum
  • Telephone Numbers can be Tested Individually
